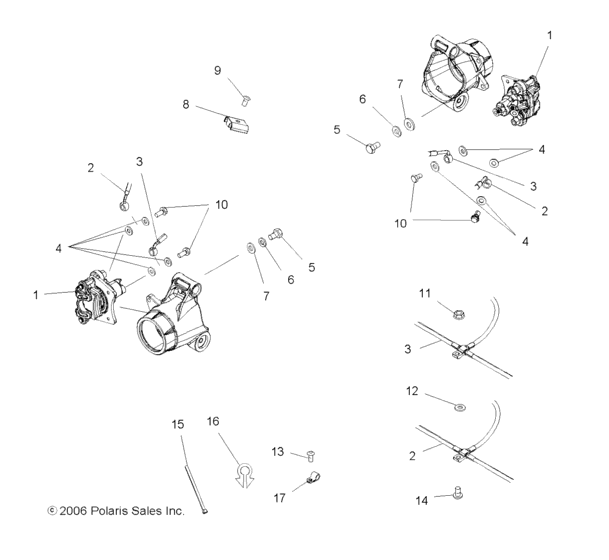

Brake, lines, rear (A07MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A07MH50FC
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1911122 Asm-caliper,brake,dh4p,165ypad |
1911122 |
US $342.70 |
||
|
2
|
2
1911138 Line-brake,rear,service,500int |
1911138 |
US $172.31 |
||
|
3
|
3
1911139 Line-brake,rear,aux,500 int'l |
1911139 |
US $171.33 |
||
|
4
|
4
5413212 Seal-stat-o-3/8,70ep |
5413212 |
US $100.30 |
||
|
5
|
5
7512457 Bolt |
7512457 |
US $3.26 |
||
|
6
|
6
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
7
|
7
7556188 Washer-fl,390x,750x,065-y |
7556188 |
US $3.26 |
||
|
8
|
8
7670126 Clip-retaining,dual ,250" line |
7670126 |
US $2.98 |
||
|
9
|
9
7517756 Screw,10-24x5/8 (10) |
7517756 |
US $1.89 |
||
|
10
|
10
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
11
|
11
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
12
|
12
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
13
|
13
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
14
|
14
7512240 Bolt |
7512240 |
US $2.45 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
17
|
17
7080683 Clamp,hose |
7080683 |
US $3.26 |
