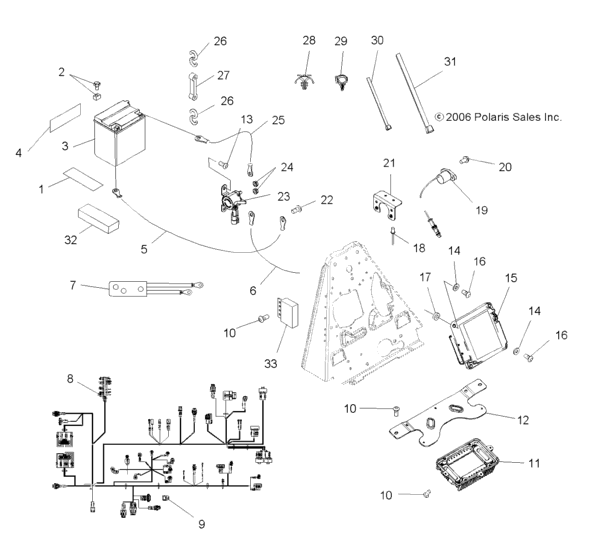

Electrical (A07MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A07MH50FC
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5810947 Foam,seal |
5810947 |
US $2.28 |
||
|
2
|
2
2202099 Battery bolt-kit,30ah |
2202099 |
US $4.53 |
||
|
3
|
3
4011496 Battery-ytx20hl,18ah,310 cca |
4011496 |
US $161.09 |
||
|
4
|
4
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
5
|
5
4011174
Cable
|
4011174 |
— | ||
|
6
|
6
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
7
|
7
2410837 Harness-winch,prewire |
2410837 |
US $96.51 |
||
|
8
|
8
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
8
|
8
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
8
|
8
2876315 Kit-harness,eng map sensor tef |
2876315 |
US $167 |
||
|
8
|
8
2875900 Kit-harness,engine air temp |
2875900 |
US $162.26 |
||
|
8
|
8
2875901 Kit-harness,engine injector |
2875901 |
US $165.43 |
||
|
8
|
8
2203800
Kit-harness,tps,atv/ranger sng
|
2203800 |
— | ||
| replacement | |||||
|
8
|
8
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
8
|
8
2410830 Harness-main,sportsman,500intlIncl. 9, Fuse Link Kits, Harness Kits; |
2410830 |
US $672.11 |
||
|
9
|
9
4010924
Module-resistor
|
4010924 |
— | ||
|
10
|
10
7512024 Screw |
7512024 |
US $2.45 |
||
|
11
|
11
4011517 Control-module,ecm, 500 efi |
4011517 |
US $854.42 |
||
|
12
|
12
5249459 Brkt-pdm, mount, plated |
5249459 |
US $16.24 |
||
|
13
|
13
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
14
|
14
7555746
Washer
|
7555746 |
— | ||
| replacement | |||||
|
14
|
14
7555904 Washer |
7555904 |
US $0.79 |
||
|
15
|
15
4012443
Module-engine control,service
|
4012443 |
— | ||
|
16
|
16
7518552 Scr-10-24x1 pn trx tfs stl-y |
7518552 |
US $1.49 |
||
|
17
|
17
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
18
|
18
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
19
|
19
4011487
Coil, ignition
|
4011487 |
— | ||
|
20
|
20
7518196 Scr-10-24x3/4 ph/tx/tri-sems y |
7518196 |
US $0.79 |
||
|
21
|
21
5249815 Brkt-coil mnt |
5249815 |
US $3.64 |
||
|
22
|
22
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
23
|
23
4010947
Solenoid, starter
|
4010947 |
— | ||
| replacement | |||||
|
23
|
23
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
|
24
|
24
7547270
Nut-hxflghd,m6,serrated
|
7547270 |
— | ||
|
25
|
25
4010471 Cable-red,8,5 battery/solenoid |
4010471 |
US $30.54 |
||
|
26
|
26
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
27
|
27
5412499 Strap-battery hold down-c |
5412499 |
US $2.17 |
||
|
28
|
28
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
29
|
29
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
|
30
|
30
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
31
|
31
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
32
|
32
5812138 Foam-lh |
5812138 |
US $4.94 |
||
|
33
|
33
4011553
Module-flash/turn
|
4011553 |
— | ||
