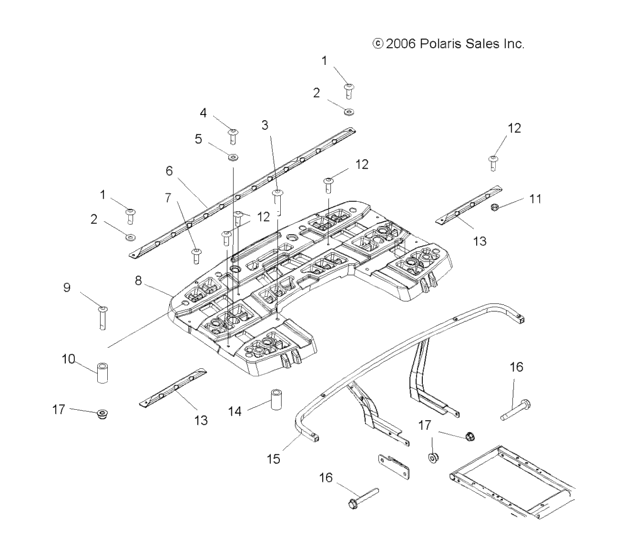

Rack mounting, rear (A07MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A07MH50FC
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518506 Scr-1/4-20x1,25-hx1tap-r,mag |
7518506 |
US $1.49 |
||
|
2
|
2
7555935 Washer |
7555935 |
US $3.26 |
||
|
3
|
3
7518215 Scr-5/16-18x3,25 tx-m |
7518215 |
US $2.98 |
||
|
4
|
4
7518505 Scr-1/4-20x1,75-hx/tap-r,mag |
7518505 |
US $1.49 |
||
|
5
|
5
7555798 Washer |
7555798 |
US $6.69 |
||
|
6
|
6
5248469-418 Channel-rear rack,flatblkwrkl |
5248469-418 |
US $80.34 |
||
|
7
|
7
7518504 Scr-1/4-20x1,75 tr/tx-m |
7518504 |
US $2.45 |
||
|
8
|
8
2633514-070 Asm-rack,rr,spm 4/500,w/o refIncl. Warning Decal; |
2633514-070 |
US $395.87 |
||
|
9
|
9
7518462 Scr-5/16-18x2,50 tx-m |
7518462 |
US $3.26 |
||
|
10
|
10
5436146
Spacer
|
5436146 |
— | ||
|
11
|
11
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
12
|
12
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
13
|
13
5248471-418 Channel-front,flatbkwrkl |
5248471-418 |
US $21.49 |
||
|
14
|
14
5334787 Spacer-,375x,75x1,81,b |
5334787 |
US $17.90 |
||
|
15
|
15
1014668-067 Rear rack,support,blk |
1014668-067 |
US $183.17 |
||
|
16
|
16
7518341 Bolt-5/16-18x1-3/4 hxflng gr5 |
7518341 |
US $6.56 |
||
|
17
|
17
7542343 Nut,flange |
7542343 |
US $6.56 |
