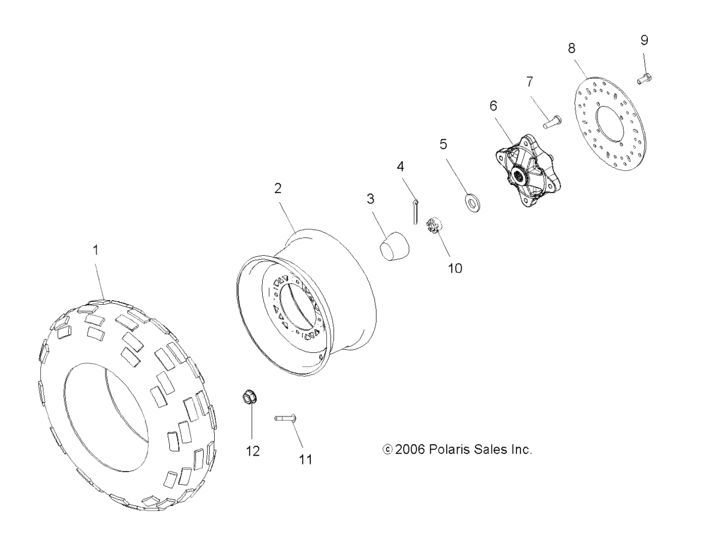

Wheel, front (A07MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A07MH50FC
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5412516 Tire,fr,25x8-12,kenda brclw__k3 |
5412516 |
US $103.06 |
||
|
2
|
2
1520269-486 Rim,front,slvr |
1520269-486 |
US $107.36 |
||
|
3
|
3
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
4
|
4
7661402 Pin, cotter |
7661402 |
US $2.45 |
||
|
5
|
5
7556004 Washer |
7556004 |
US $5.22 |
||
|
6
|
6
5134310 Hub-wheel,awd,mach |
5134310 |
US $97.44 |
||
|
7
|
7
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
8
|
8
5244314 Disc,brake,front |
5244314 |
US $88.60 |
||
|
9
|
9
7512325 Bolt |
7512325 |
US $5.25 |
||
|
10
|
10
7542810 Nut, slotted |
7542810 |
US $3.94 |
||
|
11
|
11
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
12
|
12
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
