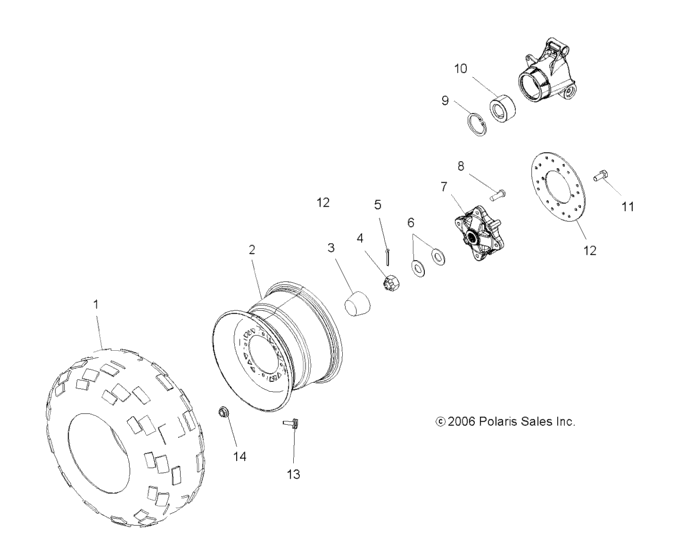

Wheel, rear (A07MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A07MH50FC
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5413112
Tire-rr,25x12,5-12,bclaw,emark
|
5413112 |
— | ||
|
2
|
2
1520457-486 Weld-rim,rear,12x8,slv |
1520457-486 |
US $152.65 |
||
|
3
|
3
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
4
|
4
7543005 Nut, castle |
7543005 |
US $9.84 |
||
|
5
|
5
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
6
|
6
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
7
|
7
5135113
Hub-wheel,rear,mach
|
5135113 |
— | ||
| replacement | |||||
|
7
|
7
5143629 Hub-wheel,rear,mach |
5143629 |
US $120.07 |
||
|
8
|
8
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
9
|
9
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
10
|
10
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
10
|
10
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
|
11
|
11
7518653 Bolt-3/8-16x3/4-hx/cp-gr5-b |
7518653 |
US $1.77 |
||
|
12
|
12
5248250 Disc-brake,rear,8,625x,188 |
5248250 |
US $95.38 |
||
|
13
|
13
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
14
|
14
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
||
