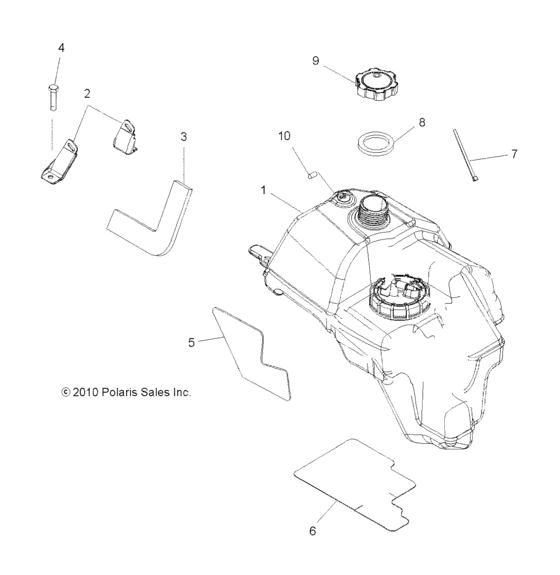

Body, Fuel Tank Asm (A11MH50FF (49ATVFUEL11SP500F)) Diagram Polaris SPORTSMAN 500 FOREST
- Model code
- A11MH50FF
- Year
- 2011
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2521132 Asm-fuel tank,500ho,7 layerIncl. Sending Unit |
2521132 |
US $791.75 |
||
|
1
|
1
2204799 Kit-fuel pickup\senderIncl. Fuel Pick-Up, Sender, Gasket, Nut, Instructions |
2204799 |
US $374.22 |
||
|
2
|
2
5247184 Brkt-fuel cover mt lh,pltd |
5247184 |
US $17.10 |
||
|
2
|
2
5247185 Brkt-fuel cover mt rh,pltd |
5247185 |
US $17.10 |
||
|
3
|
3
5812265 Seal-foam,12 in |
5812265 |
US $16.75 |
||
|
4
|
4
7517219 Screw |
7517219 |
US $3.75 |
||
|
5
|
5
5813282 Foil-fuel tank,side,sportsman |
5813282 |
US $7.91 |
||
|
6
|
6
5813218 Foil-fuel tank,sportsman |
5813218 |
US $8.52 |
||
|
7
|
7
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
8
|
8
5812123 Gasket |
5812123 |
US $10.03 |
||
|
9
|
9
2520957 Cap-gas,vented,unleaded w/cvrIncl. 8 |
2520957 |
US $56.14 |
||
|
10
|
10
5413875 Cap, plug, vent |
5413875 |
US $1 |
