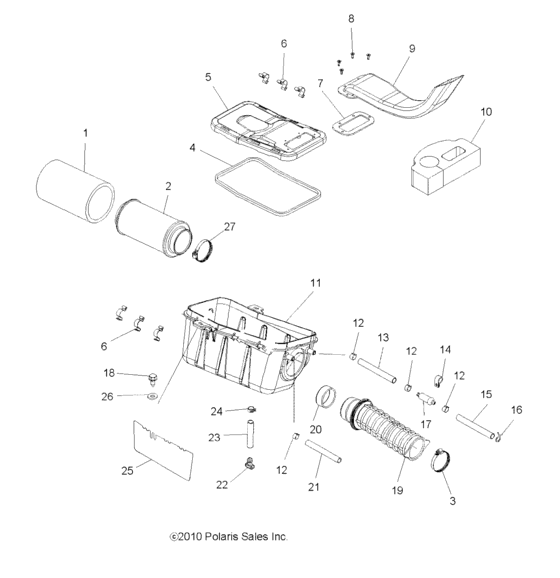

Engine, Air Intake System (A11MH50FF (49ATVAIRBOX11SP500)) Diagram Polaris SPORTSMAN 500 FOREST
- Model code
- A11MH50FF
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811633 Filter,preclean,sleeve |
5811633 |
US $14.77 |
||
|
2
|
2
7080595
Filter,air
|
7080595 |
— | ||
| replacement | |||||
|
2
|
2
7082101
FILTER-AIR INTAKE
|
7082101 |
— | ||
|
3
|
3
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
|
4
|
4
5812829 Seal-airbox cover |
5812829 |
US $16.89 |
||
|
5
|
5
5432868 Cover,airbox |
5432868 |
US $41.58 |
||
|
6
|
6
5242044 Clip |
5242044 |
US $7.68 |
||
|
7
|
7
5411422 Gasket,intake |
5411422 |
US $8.17 |
||
|
8
|
8
7517317 Screw(10) |
7517317 |
US $0.79 |
||
|
9
|
9
5436937 Duct-air inlet |
5436937 |
US $47.25 |
||
|
10
|
10
5811626 Seal,foam |
5811626 |
US $20.69 |
||
|
11
|
11
5438552 Box-air intake,spmn |
5438552 |
US $117.20 |
||
|
12
|
12
7080699
Clamp,hose
|
7080699 |
— | ||
|
13
|
13
8450073-600 Line,breather,3/8 id, |
8450073-600 |
US $61.06 |
||
|
14
|
14
7080913 Clamp-p,stl,1" bdl dia-b |
7080913 |
US $3.94 |
||
|
15
|
15
5413104 Hose-breather,formed,500 cc |
5413104 |
US $19.30 |
||
|
16
|
16
7080694 Clamp,hose,spring |
7080694 |
US $3.94 |
||
|
17
|
17
2530029 Filter,breather,in line |
2530029 |
US $6.91 |
||
|
18
|
18
7515179 Screw |
7515179 |
US $2.98 |
||
|
19
|
19
5412562 Boot-carb,40 mm |
5412562 |
US $47.65 |
||
|
20
|
20
5433847 Sleeve-carb,inner |
5433847 |
US $13.20 |
||
|
21
|
21
5413003 Breather-line-115 cm,slit |
5413003 |
US $39.60 |
||
|
22
|
22
5435299 Plug-trap |
5435299 |
US $4.34 |
||
|
23
|
23
8450059-150 Fuel line |
8450059-150 |
US $50.24 |
||
|
24
|
24
7080650 Clamp,hose |
7080650 |
US $3.26 |
||
|
25
|
25
5813652 Foil-airbox |
5813652 |
US $16.24 |
||
|
26
|
26
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
27
|
27
7080707 Clamp,band,narrow (10) |
7080707 |
US $52.50 |
||
