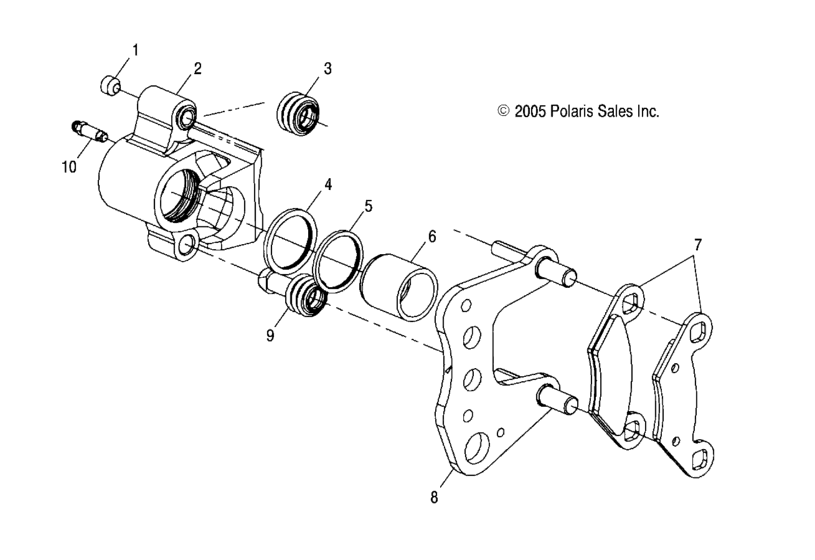

Brake, front (A06MH50FB) Diagram Polaris SPORTSMAN 500 HO INTL
- Model code
- A06MH50FB
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515489 Scr-3/8-24x5/16 soc set-y |
7515489 |
US $3.75 |
||
|
2
|
2
1930642 Kit,boot,front brake |
1930642 |
US $11.81 |
||
|
3
|
3
5410494
Boot, pin seal
If built before 10/17/05; |
5410494 |
— | ||
|
3
|
3
5412506 Boot-pin sealIf built after 10/17/05; |
5412506 |
US $3.94 |
||
|
4
|
4
5410780 Ring,square,molded,,103x,134 |
5410780 |
US $13.04 |
||
|
5
|
5
5410779 Ring,square,molded,,094 |
5410779 |
US $13.04 |
||
|
6
|
6
5132294
Piston, brake, long
|
5132294 |
— | ||
| replacement | |||||
|
6
|
6
1930665 Piston & seal,kit |
1930665 |
US $54.15 |
||
|
7
|
7
2202412 KIT BRAKE PAD ASM (4) |
2202412 |
US $68.92 |
||
|
8
|
8
1910411
Asm., mount, caliper
|
1910411 |
— | ||
|
9
|
9
5410495
Boot, bushing
If built before 10/17/05; |
5410495 |
— | ||
|
9
|
9
5412505 Boot-pin bushingIf built after 10/17/05; |
5412505 |
US $3.94 |
||
|
10
|
10
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
