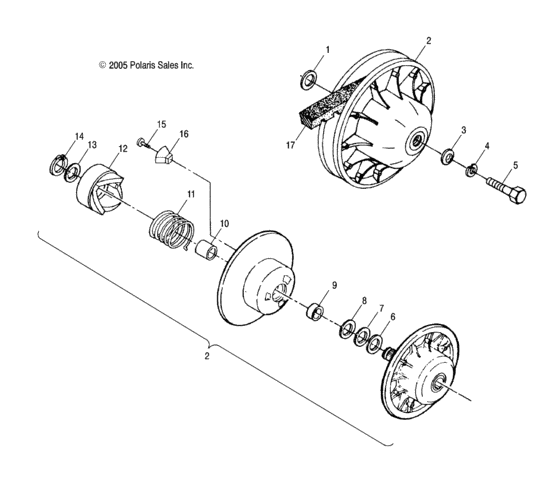

Driven clutch (A06MH50FB) Diagram Polaris SPORTSMAN 500 HO INTL
- Model code
- A06MH50FB
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7556120 Bushing-7/8 x 3/8 x 16 ga-y (103 Max; |
7556120 |
US $1.49 |
||
|
2
|
2
1321874 Clutch,drvn,asmIncl. 6-10,13-16; |
1321874 |
US $640.10 |
||
|
3
|
3
5220646 Washer, domed |
5220646 |
US $6.56 |
||
|
4
|
4
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
5
|
5
7515327 Bolt |
7515327 |
US $3.75 |
||
|
6
|
6
7555898 Washer-1,5x2,0x,020-y.020; |
7555898 |
US $4.03 |
||
|
7
|
7
7556076 Washer-1,50x2,00x,025-y.025; |
7556076 |
US $2.98 |
||
|
8
|
8
7556804 Wshr-1,505x2,00x,030-y.030; |
7556804 |
US $0.79 |
||
|
9
|
9
3576504 Bushing,moveable,1/2 inch |
3576504 |
US $21.49 |
||
|
10
|
10
3576511 Bushing,moveable,1 inch |
3576511 |
US $29.54 |
||
|
11
|
11
7041782 Spring-cltch,chrm,slcn,blk,dri |
7041782 |
US $45.69 |
||
|
12
|
12
5132344 Ramp,sta,comp (mach) |
5132344 |
US $76.81 |
||
|
13
|
13
5244116 Spacer-1,350x1,750x,020-yw/tab |
5244116 |
US $6.20 |
||
|
14
|
14
7710448 Ring,retaining |
7710448 |
US $3.94 |
||
|
15
|
15
7511854 Bolt(10) |
7511854 |
US $1.89 |
||
|
16
|
16
5430766
Button, ramp
|
5430766 |
— | ||
| replacement | |||||
|
16
|
16
5450873 BUTTON |
5450873 |
US $27.30 |
||
|
17
|
17
3211077 Belt,drive (5) |
3211077 |
US $102.36 |
||
