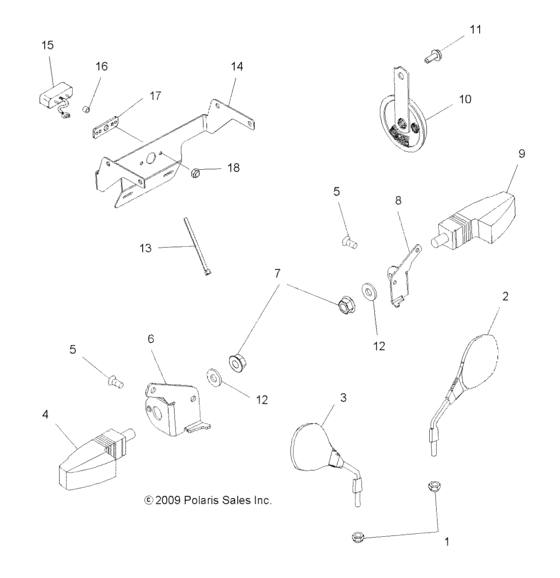

Electrical, turn signals/mirrors/horn (A10MH50FX/FF) Diagram Polaris SPORTSMAN 500 HO INTL
- Model code
- A10MH50FX/FF
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7546804 Nut,hex,(10), nylokIncl RH, LH mirrors; |
7546804 |
US $1.89 |
||
|
2
|
2
2633314 Asm-mirror,hndlbr,lh |
2633314 |
US $70.86 |
||
|
3
|
3
2633315 Asm-mirror,hndlbr,rh |
2633315 |
US $70.86 |
||
|
4
|
4
2410722 Signal-turn,front,rh,blk |
2410722 |
US $40.58 |
||
|
5
|
5
7517790 Scr,#10x3/4 hi/lo |
7517790 |
US $3.26 |
||
|
6
|
6
5250013-067 Brkt-turn signal mnt,rh,blk |
5250013-067 |
US $37.63 |
||
|
7
|
7
7547345 Nut-m12-1,25,hxfl,zinc clear |
7547345 |
US $3.75 |
||
|
8
|
8
5250012-067 Brkt-turn signal mnt,lh,blk |
5250012-067 |
US $36.63 |
||
|
9
|
9
2410721 Signal-turn,front,lh,blk |
2410721 |
US $41.76 |
||
|
10
|
10
4011579 Horn-disc |
4011579 |
US $81.76 |
||
|
11
|
11
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
12
|
12
7556377 Washer-1/2 int lk-(1224)-z |
7556377 |
US $0.79 |
||
|
13
|
13
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
14
|
14
5250025-067 Brkt-registration plate,blk |
5250025-067 |
US $63.95 |
||
|
15
|
15
2410629 Light-license plate,black |
2410629 |
US $42.77 |
||
|
16
|
16
5134403 Spcr-lp light,5,0x8,0x4,0,al |
5134403 |
US $2.28 |
||
|
17
|
17
5812520 Spacer-lp light |
5812520 |
US $27.56 |
||
|
18
|
18
7546601
Nut, nylok(10)
|
7546601 |
— |
