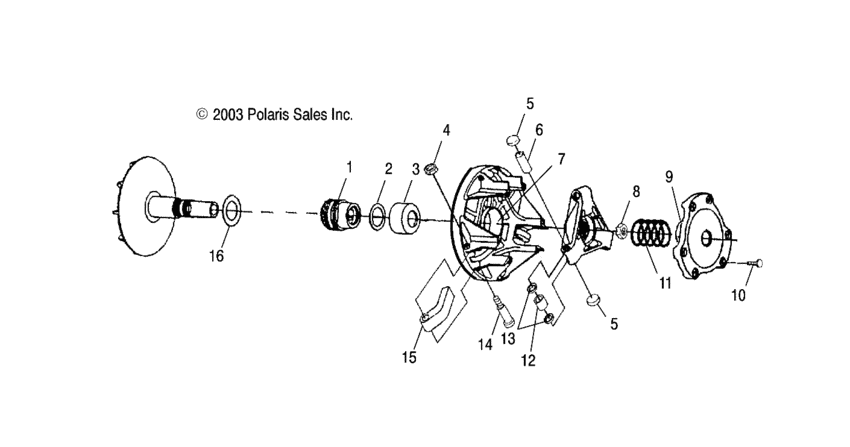

Drive clutch (A05MH50AB/AC/AG/AH/AL/AT/FB) Diagram Polaris SPORTSMAN 500 HO/INTL
- Model code
- A05MH50AB
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
1520231 Asm,,clutch,drive,1-way,hlrd |
1520231 |
US $263.69 |
||
2
|
2
7556202 Washer-1,39x1,99x,030,brass |
7556202 |
US $3.75 |
||
3
|
3
5631119
Spacer-1,25x2,25,pm
|
5631119 |
— | ||
4
|
4
7541906 Nut flexloc(10) |
7541906 |
US $5.25 |
||
5
|
5
5431936
Button,clutch (10)
|
5431936 |
— | ||
replacement | |||||
5
|
5
5439254 Button,clutch,rubber backed |
5439254 |
US $12.81 |
||
6
|
6
5020422 Pin-roller,(10) |
5020422 |
US $3.75 |
||
replacement | |||||
6
|
6
5133079 Pin-roller,1",sbn |
5133079 |
US $9.10 |
||
7
|
7
3585712 Bearing |
3585712 |
US $33.48 |
||
8
|
8
7547130
Nut, jam
|
7547130 |
— | ||
replacement | |||||
8
|
8
2201615 Limiting nut,kit,ebs |
2201615 |
US $14.09 |
||
9
|
9
3576510 Bearing, cover,(10) |
3576510 |
US $9.85 |
||
10
|
10
7518062 Scr-1/4-20x1,25 hx/fl gr5 |
7518062 |
US $2.98 |
||
11
|
11
7041157 Spring,clutch |
7041157 |
US $35.67 |
||
12
|
12
1321457 Roller/bushing asm,(3) ** |
1321457 |
US $26.60 |
||
13
|
13
5430945 Washer(10) |
5430945 |
US $5.25 |
||
replacement | |||||
13
|
13
5438247 Washer-clutch,spider roller |
5438247 |
US $5.25 |
||
14
|
14
7512266 Bolt,shoulder(10) |
7512266 |
US $3.94 |
||
15
|
15
5632283 Weight, shift, 10-whf |
5632283 |
US $41.35 |
||
16
|
16
7556204 Washer-1,39x2,24x,030,ptfe |
7556204 |
US $9.85 |
