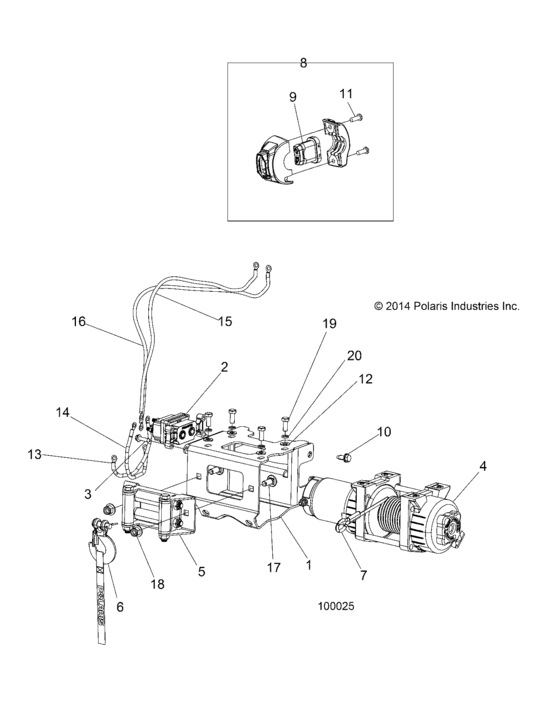

Chassis, Winch (A18SES57C2 (100025)) Diagram Polaris SPORTSMAN 570 EPS TRACTOR
- Model code
- A18SES57C1/C2/C5/C7/E1/E5/E7/T57C1/C7/E1/E7
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1022577 WELD-WINCH MT BRKT,CTR,ATV |
1022577 |
US $103.97 |
||
|
2
|
2
4015095 CONTACTOR-WINCH,POL,LIF,CAP |
4015095 |
US $134.40 |
||
|
3
|
3
7519342 Scr-tfhfl-m6x1.0x25,zod |
7519342 |
US $1.77 |
||
|
4
|
4
2206563 WINCH-POL2500,BT |
2206563 |
US $613.50 |
||
|
5
|
5
2411848 Roller-fairlead,winch 25/3500 |
2411848 |
US $81.76 |
||
|
6
|
6
2411836 Hd hook & latchINCL. STRAP |
2411836 |
US $9.43 |
||
|
6
|
6
7082085 STRAP-WINCH,HOOK |
7082085 |
US $12.30 |
||
|
7
|
7
2878890 Hd 25-3500 cable |
2878890 |
US $45.47 |
||
|
8
|
8
2207175 K-Winch Switch,hbr,eu,atv |
2207175 |
US $108.31 |
||
|
9
|
9
4017111
Switch-Hbr,eu,atv
|
4017111 |
— | ||
|
10
|
10
7518514
Bolt-m8x1,25x25,hxflg-olive d
|
7518514 |
— | ||
|
11
|
11
7518238
Scr-10x5/8-hi/lo,pn-t25,trx-m
|
7518238 |
— | ||
|
12
|
12
7555770
Washer
|
7555770 |
— | ||
| replacement | |||||
|
12
|
12
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
13
|
13
4013468-300 CABLE-WINCH,YELLOW 6 GA,300MM |
4013468-300 |
US $22.45 |
||
|
14
|
14
4013469-300 CABLE-WINCH,BLUE 6 GA,300MM |
4013469-300 |
US $21.49 |
||
|
15
|
15
4013470-530 CABLE-POWER,WINCH,BLK #6,530MM |
4013470-530 |
US $22.45 |
||
|
17
|
17
7519372 Scr-rhcar-m10x1.5x25 8.8 zod |
7519372 |
US $3.75 |
||
|
18
|
18
7547423 Nut-m10x1,5 hfn nyloc zod |
7547423 |
US $3.94 |
||
|
19
|
19
7518097 Scr-hexhd,m8x20,zinc,0600088 |
7518097 |
US $3.75 |
||
|
20
|
20
7556111 Washer-lock |
7556111 |
US $2.45 |
||
