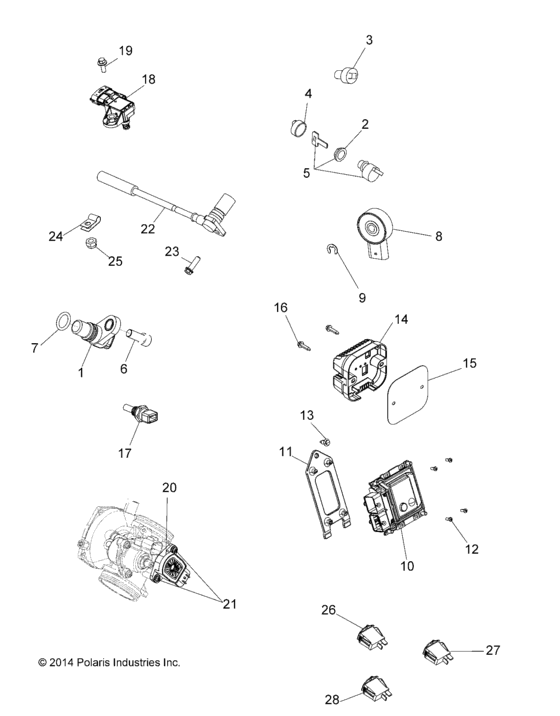

Electrical, Switches, Sensors And Ecm (A18SHD57B9/E57BB/E57BS (49ATVELECT15570SP)) Diagram Polaris SPORTSMAN 570 SP
- Model code
- A18SHD57B9/E57BB/E57BS
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4013908 Sensor-speed,trans |
4013908 |
US $103.36 |
||
|
2
|
2
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
3
|
3
4110164 Switch,stoplightBRAKE PRESSURE |
4110164 |
US $34.49 |
||
|
4
|
4
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
5
|
5
4012165 Switch-key,3 pos,mt slvINCL. 5,7,KEY |
4012165 |
US $125.49 |
||
|
5
|
5
4010278 Key blank (20/21/67/68) series |
4010278 |
US $12.81 |
||
|
5
|
5
4010321 Key blank (22/23/27/28) series |
4010321 |
US $14.77 |
||
|
6
|
6
3234247 Screw,tappinghexhead1/4-20x,75 |
3234247 |
US $3.94 |
||
|
7
|
7
3234302 O-ring, -113 |
3234302 |
US $9.24 |
||
|
8
|
8
7661999 Pin-gear position switchGEAR POSITION |
7661999 |
US $130.52 |
||
|
9
|
9
3233834 Ring-retaining |
3233834 |
US $10.01 |
||
|
10
|
10
4012838 Service ecu, all my11 800 dom t |
4012838 |
US $567.23 |
||
|
11
|
11
5438708-070 Mnt-ecm,rear,blk |
5438708-070 |
US $7.09 |
||
|
12
|
12
7519091 Scr-#10x1/2-hi/lo-pn-t25,trx-m |
7519091 |
US $2.63 |
||
|
13
|
13
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
14
|
14
4015230
REG-3PH,50A,SERIES,HISPD,TCAP
|
4015230 |
— | ||
|
14
|
14
5338063 Spring-coolant hose guide |
5338063 |
US $7.09 |
||
|
14
|
14
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
15
|
15
5253294 Cover-voltage regulator |
5253294 |
US $2.85 |
||
|
16
|
16
7515179 Screw |
7515179 |
US $2.98 |
||
|
17
|
17
4010644 Sensor-thermister |
4010644 |
US $88.57 |
||
|
18
|
18
2411528 Sensor-tmap dss3-tf |
2411528 |
US $115.45 |
||
|
19
|
19
7516603 Bolt(1) |
7516603 |
US $8.66 |
||
|
20
|
20
3131705 Sensor assy |
3131705 |
US $303.17 |
||
|
21
|
21
3131628 Screw |
3131628 |
US $1.77 |
||
|
22
|
22
2411719 Sensor-crank position |
2411719 |
US $103.36 |
||
|
23
|
23
7518576 Scr-m6x20,hxflg,0600214 |
7518576 |
US $0.79 |
||
|
24
|
24
7080367 Clamp, cable |
7080367 |
US $3.26 |
||
|
25
|
25
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
26
|
26
4011074 Switch-worklight,on/offB9 |
4011074 |
US $37.19 |
||
|
27
|
27
4011319 Switch-handwarmer,spdtB9 |
4011319 |
US $44.10 |
||
|
28
|
28
4012483 Switch-thumb warmer,hi/lo,vB9 |
4012483 |
US $42.21 |
