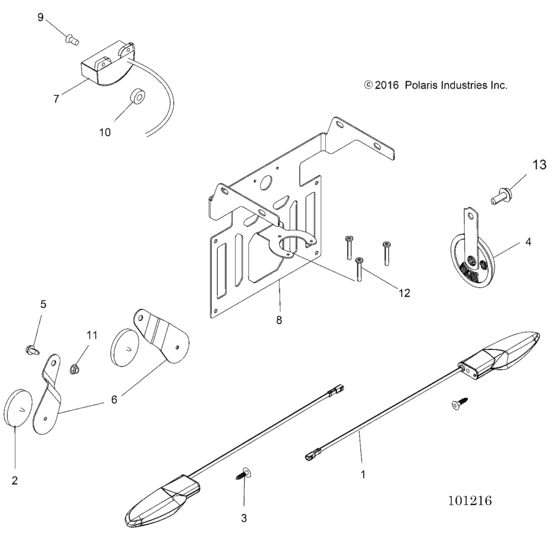

Electrical, Turn Signals, Horn And License Plate Light (A17SES57C1/C2/C7/CL/E1/E2/E7/EL/SET57C1/C2/E1/E2) Diagram Polaris SPORTSMAN 570 TRACTOR
- Model code
- A17SES57C1/C2/C7/CL/E1/E2/E7/EL/SET57C1/C2/E1/E2
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2413531 SIGNAL-TURN,FRONT,TR |
2413531 |
US $102.39 |
||
|
2
|
2
5452126 REFLECTOR-RED,CIRCLECL/EL ONLY |
5452126 |
US $7.67 |
||
|
3
|
3
7518546 Scr-m6x1,0x20mm,tx,ph,8,8-b |
7518546 |
US $0.79 |
||
|
4
|
4
4011579 Horn-disc |
4011579 |
US $81.76 |
||
|
5
|
5
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
6
|
6
5260664-458 BRKT-REAR,REFLECTOR,LH M.BLKCL/EL ONLY |
5260664-458 |
US $42.82 |
||
|
6
|
6
5260665-458 BRKT-REAR,REFLECTOR,RH M.BLKCL/EL ONLY |
5260665-458 |
US $42.82 |
||
|
7
|
7
2411278 Light, license plateTO 2/1/2017 |
2411278 |
US $134.70 |
||
|
7
|
7
2413838 LIGHT-LICENSE PLATE,TRACTR,BLKFROM 2/1/2017 |
2413838 |
US $118.16 |
||
|
8
|
8
5263772-458 BRK-LIC.PLATE,RR,TRL-SKT,M.BLK |
5263772-458 |
US $39.39 |
||
|
9
|
9
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
10
|
10
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
11
|
11
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
12
|
12
7512025 Screw |
7512025 |
US $3.26 |
||
|
13
|
13
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
