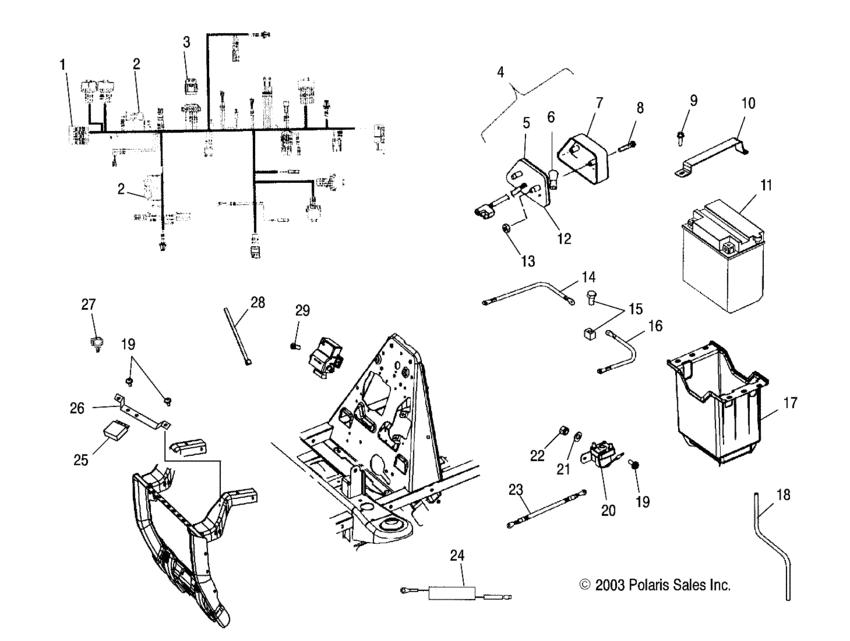

Electrical/taillight (A04CH68AC/AF/AH/AJ/AT/AV) Diagram Polaris SPORTSMAN 700
- Model code
- A04CH68AC/AF/AH/AJ/AT/AV
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2461177
Harness-main,sportsman 600/700
If built after 2/17/03; |
2461177 |
— | ||
|
1
|
1
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
1
|
1
2460976
Harness-main,spsman
If built before 2/17/03; |
2460976 |
— | ||
|
2
|
2
2410323 Breaker-circut,20 amp |
2410323 |
US $47.67 |
||
|
3
|
3
4010924
Module-resistor
|
4010924 |
— | ||
|
4
|
4
2410320 Asm-taillight,12v,series filIncl. 7-13; |
2410320 |
US $61.06 |
||
|
5
|
5
4032045 Gasket |
4032045 |
US $5.11 |
||
|
6
|
6
4030043 Bulb |
4030043 |
US $4.94 |
||
|
7
|
7
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
8
|
8
4032029 Screw |
4032029 |
US $2.98 |
||
|
9
|
9
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
10
|
10
5245125-067
Strap-battery,holddown30amp,bk
|
5245125-067 |
— | ||
|
11
|
11
4010630 Battery-30 amp,top mount |
4010630 |
US $151.64 |
||
|
12
|
12
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
13
|
13
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
14
|
14
4010470
Cable-black,25"
|
4010470 |
— | ||
|
15
|
15
2202099 Battery bolt-kit,30ah |
2202099 |
US $4.53 |
||
|
16
|
16
4010471 Cable-red,8,5 battery/solenoidAC;AF;AH;AJ; |
4010471 |
US $30.54 |
||
|
17
|
17
5434037 Box-battery |
5434037 |
US $35.12 |
||
|
18
|
18
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
19
|
19
7512024 Screw |
7512024 |
US $2.45 |
||
|
20
|
20
4010930
Switch, magnetic
If built after 6/26/03; |
4010930 |
— | ||
| replacement | |||||
|
20
|
20
4011335 Switch-magneticIf built after 6/26/03; |
4011335 |
US $70.26 |
||
|
20
|
20
3087196
Switch, magnetic
If built before 6/26/03; |
3087196 |
— | ||
| replacement | |||||
|
20
|
20
4011335 Switch-magneticIf built before 6/26/03; |
4011335 |
US $70.26 |
||
|
21
|
21
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
22
|
22
7542105 Nut hex |
7542105 |
US $3.26 |
||
|
23
|
23
4010376 Cable,solenoid/stater,25" |
4010376 |
US $38.41 |
||
|
23
|
23
2410411 Jumper-harness,15k ohmIf built 2/03/03 to 3/05/03; |
2410411 |
US $54.81 |
||
|
24
|
24
4010796
Rectifier, regulator
If built before 2/17/03; |
4010796 |
— | ||
| replacement | |||||
|
24
|
24
2203638 Kit,rct-reg,rplc 4010670If built before 2/17/03; |
2203638 |
US $158.57 |
||
|
25
|
25
4010929
Rect-reg,lr-302
If built between 2/17/03 and 4/05/04); |
4010929 |
— | ||
|
25
|
25
4011053
Rect-reg,lr-302
If built after 4/05/04; |
4011053 |
— | ||
|
26
|
26
5133182 Heat-sink,rect, |
5133182 |
US $44.71 |
||
|
27
|
27
4020139 Clip,rosebudSmall; |
4020139 |
US $3.26 |
||
|
28
|
28
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
29
|
29
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
