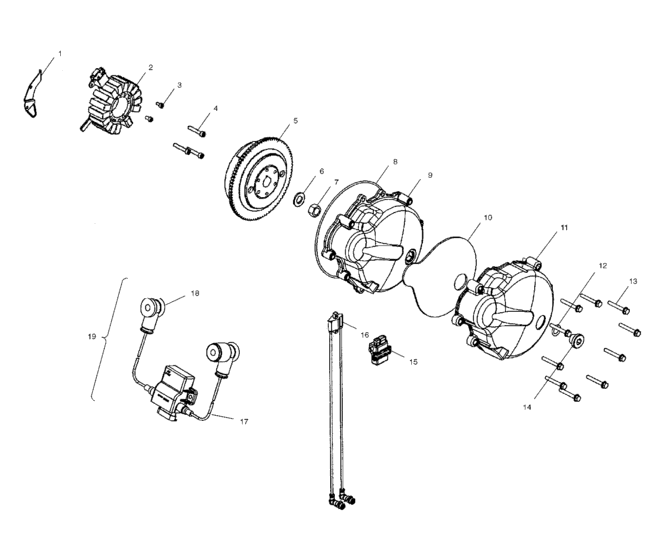

Magneto (A04CH68AC/AF/AH/AJ/AT/AV) Diagram Polaris SPORTSMAN 700
- Model code
- A04CH68AC/AF/AH/AJ/AT/AV
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5245364 Stator-bracket,wire-hold-down |
5245364 |
US $47.25 |
||
|
2
|
2
4010709
Asm., stator
If built before 2/23/03; |
4010709 |
— | ||
|
2
|
2
4010901 Asm-stator,kokusanIf built after 2/23/03; |
4010901 |
US $641.08 |
||
|
2
|
2
2202602 Kit-ignition,700,kok,atvIncl. Jumper; |
2202602 |
US $958.16 |
||
|
3
|
3
7517847 Scr-m5x0,8x10 soc/cp-d |
7517847 |
US $3.94 |
||
|
4
|
4
7517848 Scr-m6x1,0x35 soc/cp-y/dIf built before 2/23/03; |
7517848 |
US $3.94 |
||
|
4
|
4
7517714 ScrewIf built after 2/23/03; |
7517714 |
US $8.66 |
||
|
5
|
5
4060152 Flywheel,ign,,twin atvIf built before 2/23/03; |
4060152 |
US $627.27 |
||
|
5
|
5
4010899 Asm-flywheel,ignition kokIf built after 2/23/03; |
4010899 |
US $627.27 |
||
|
6
|
6
7555907 Washer |
7555907 |
US $3.94 |
||
|
7
|
7
7546909 Nut |
7546909 |
US $24.41 |
||
|
8
|
8
5812359 Seal-o-ring,,128x7,895 |
5812359 |
US $14.58 |
||
|
9
|
9
1201684
Housing,stator,twin,atv
|
1201684 |
— | ||
|
10
|
10
5812283 Cover-sound dampening |
5812283 |
US $18.32 |
||
|
11
|
11
5434310 Cover-outer,mag twin 4 stroke |
5434310 |
US $33.50 |
||
|
12
|
12
5411564 O-ring |
5411564 |
US $1.28 |
||
|
13
|
13
7517950 Scr-m6x1,0x45 hx-fl-y/d |
7517950 |
US $3.94 |
||
|
14
|
14
5433820 Plug,hole,tmng,3/4-16,nylon |
5433820 |
US $10.85 |
||
|
15
|
15
4010897 Conroller-ignition atv kokIf built after 2/23/03; |
4010897 |
US $378.14 |
||
|
16
|
16
4010898 Coil-ignition kokIf built after 2/23/03; |
4010898 |
US $142.80 |
||
|
17
|
17
4010124-66
Wire, ignition
If built before 2/23/03; |
4010124-66 |
— | ||
|
18
|
18
4010526
Boot
If built before 2/23/03; |
4010526 |
— | ||
|
19
|
19
4010696 Controller-ignition,680Incl. 17,18;If built before 2/23/03; |
4010696 |
US $324.98 |
