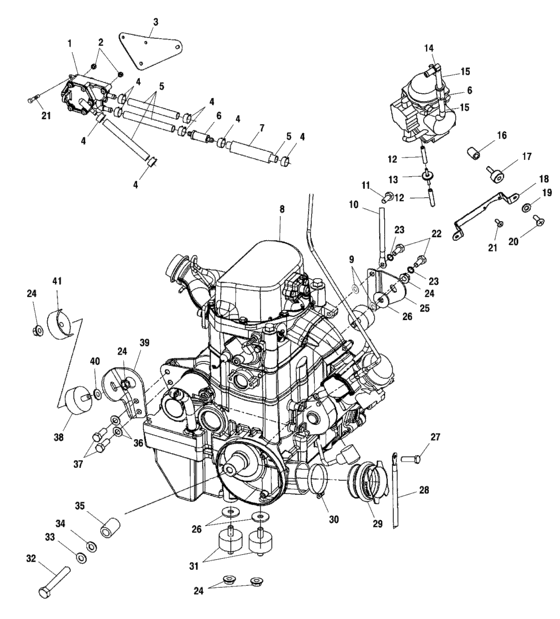

Engine mounting (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2520227 Asm-pump fuel |
2520227 |
US $83.72 |
||
|
2
|
2
7546601
Nut, nylok(10)
|
7546601 |
— | ||
|
3
|
3
5243829
Strap-fuel pump,mtg,consol plt
|
5243829 |
— | ||
|
4
|
4
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
5
|
5
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
6
|
6
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
7
|
7
8450080-50
Sheath, foil
|
8450080-50 |
— | ||
|
8
|
8
2202082
Kit, short block, atv
NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for; |
2202082 |
— | ||
|
9
|
9
7555770
Washer
|
7555770 |
— | ||
| replacement | |||||
|
9
|
9
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
10
|
10
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
11
|
11
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
12
|
12
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
13
|
13
7051011 Valve,check |
7051011 |
US $9.15 |
||
|
14
|
14
7052208 Fttng,90 d,press-on |
7052208 |
US $5.22 |
||
|
15
|
15
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
16
|
16
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
17
|
17
5411548 Mount,rubber |
5411548 |
US $14.28 |
||
|
18
|
18
5245519-067
Brkt-carb damper,blk
|
5245519-067 |
— | ||
|
19
|
19
7552605 Washer |
7552605 |
US $3.92 |
||
|
20
|
20
7515106 Bolt(10) |
7515106 |
US $0.79 |
||
|
21
|
21
7517867 Screw,m5x0,8x10,phpn zy,l/w sem |
7517867 |
US $2.45 |
||
|
22
|
22
7516714 Screw,h,h,cap |
7516714 |
US $3.26 |
||
|
23
|
23
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
24
|
24
7547108 Nut |
7547108 |
US $2.98 |
||
|
25
|
25
5244622-067
Brkt,mnt,engine,top,blk
|
5244622-067 |
— | ||
|
26
|
26
7555815 Washer, flat |
7555815 |
US $3.26 |
||
|
27
|
27
7517868 Bolt-m6x1,0x30,hxhd sems l/wzy |
7517868 |
US $9.85 |
||
|
28
|
28
4010470
Cable-black,25"
|
4010470 |
— | ||
|
29
|
29
5411944
Boot, intake
|
5411944 |
— | ||
|
30
|
30
7080909 Clamp,narrow band(1,77/2,75) |
7080909 |
US $6.69 |
||
|
31
|
31
3021119
Mount, rubber, rear
|
3021119 |
— | ||
| replacement | |||||
|
31
|
31
3022076 Isolator-3/8-24m,3/8-16m,60dur |
3022076 |
US $34.46 |
||
|
32
|
32
7512566 Bolt |
7512566 |
US $12.79 |
||
|
33
|
33
7575202 Washer lock |
7575202 |
US $6.56 |
||
|
34
|
34
5210748 Washer(10) |
5210748 |
US $5.25 |
||
|
35
|
35
5430261 Bushing |
5430261 |
US $9.10 |
||
|
36
|
36
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
37
|
37
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
38
|
38
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
38
|
38
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
39
|
39
5244771-067 Mnt-engine,lower,front,blk |
5244771-067 |
US $28.93 |
||
|
40
|
40
7555823 Washer |
7555823 |
US $6.56 |
||
|
41
|
41
5245043-067
Bracket, torque stop
|
5245043-067 |
— | ||
