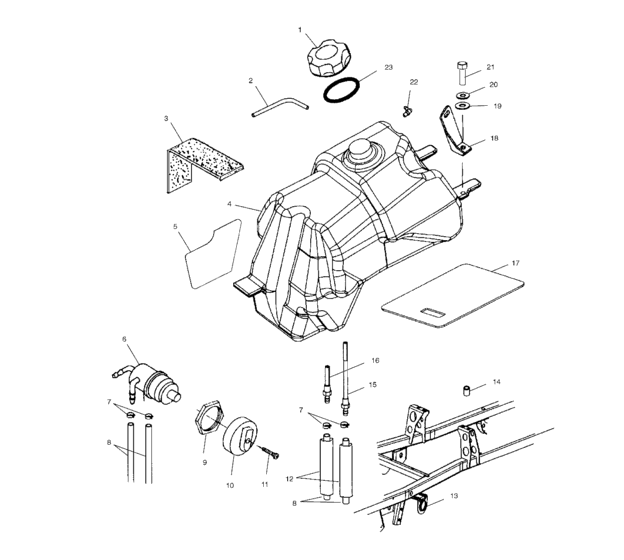

Fuel tank (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5434329 Cap-gas tank,gunmetalIncl. 23; |
5434329 |
US $19.30 |
||
|
2
|
2
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
3
|
3
5812265 Seal-foam,12 in |
5812265 |
US $16.75 |
||
|
4
|
4
2520203
Asm., fuel tank
Incl. 15,16,22; |
2520203 |
— | ||
|
5
|
5
5182004
Foil, fuel tank
|
5182004 |
— | ||
|
6
|
6
7052161 Valve,3-way |
7052161 |
US $31.52 |
||
|
7
|
7
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
8
|
8
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
9
|
9
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
10
|
10
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
11
|
11
7517505 Screw(10) |
7517505 |
US $1.49 |
||
|
12
|
12
8450080-65
Sheath, foil
|
8450080-65 |
— | ||
|
13
|
13
5240577-067
Brkt,fuelvalve,blk
|
5240577-067 |
— | ||
|
14
|
14
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
15
|
15
7052150 Fitting,fuel out,main,4",y |
7052150 |
US $19.51 |
||
|
16
|
16
7052149 Fitting,fuel out,res,,z |
7052149 |
US $14.09 |
||
|
17
|
17
5812005
Foil
|
5812005 |
— | ||
|
18
|
18
5246069-067
Brkt-fuel cvr mnt,rear,lh,blk
|
5246069-067 |
— | ||
|
18
|
18
5246070-067
Bracket, mounting, rear, rh
|
5246070-067 |
— | ||
|
19
|
19
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
20
|
20
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
21
|
21
7512247 Bolt(10) * |
7512247 |
US $0.79 |
||
|
22
|
22
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
23
|
23
5812123 Gasket |
5812123 |
US $10.03 |
