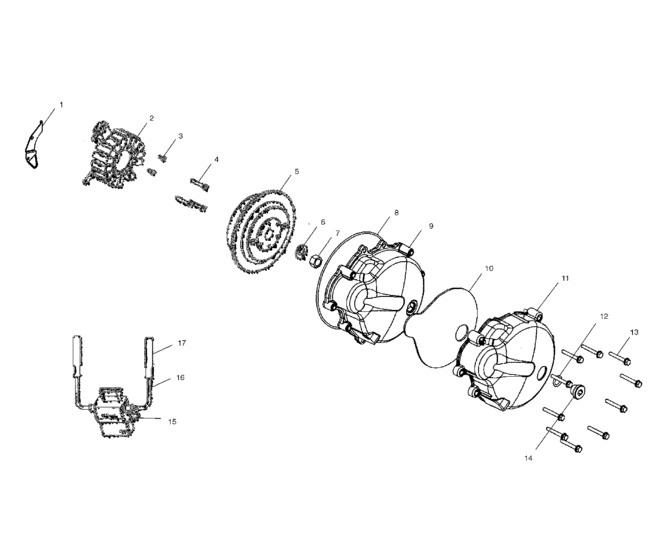

Magneto (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5245364 Stator-bracket,wire-hold-down |
5245364 |
US $47.25 |
||
|
2
|
2
4010709
Asm., stator
|
4010709 |
— | ||
|
3
|
3
7517847 Scr-m5x0,8x10 soc/cp-d |
7517847 |
US $3.94 |
||
|
4
|
4
7517848 Scr-m6x1,0x35 soc/cp-y/d |
7517848 |
US $3.94 |
||
|
5
|
5
4060152 Flywheel,ign,,twin atv |
4060152 |
US $627.27 |
||
|
6
|
6
7555907 Washer |
7555907 |
US $3.94 |
||
|
7
|
7
7546909 Nut |
7546909 |
US $24.41 |
||
|
8
|
8
5812049
O-ring
|
5812049 |
— | ||
|
9
|
9
1201684
Housing,stator,twin,atv
|
1201684 |
— | ||
|
10
|
10
5812283 Cover-sound dampening |
5812283 |
US $18.32 |
||
|
11
|
11
5434310 Cover-outer,mag twin 4 stroke |
5434310 |
US $33.50 |
||
|
12
|
12
5411564 O-ring |
5411564 |
US $1.28 |
||
|
13
|
13
7517950 Scr-m6x1,0x45 hx-fl-y/d |
7517950 |
US $3.94 |
||
|
14
|
14
5433820 Plug,hole,tmng,3/4-16,nylon |
5433820 |
US $10.85 |
||
|
15
|
15
4010696 Controller-ignition,680 |
4010696 |
US $324.98 |
||
|
16
|
16
4010124-66
Wire, ignition
|
4010124-66 |
— | ||
|
17
|
17
4010477
Cap
|
4010477 |
— |
