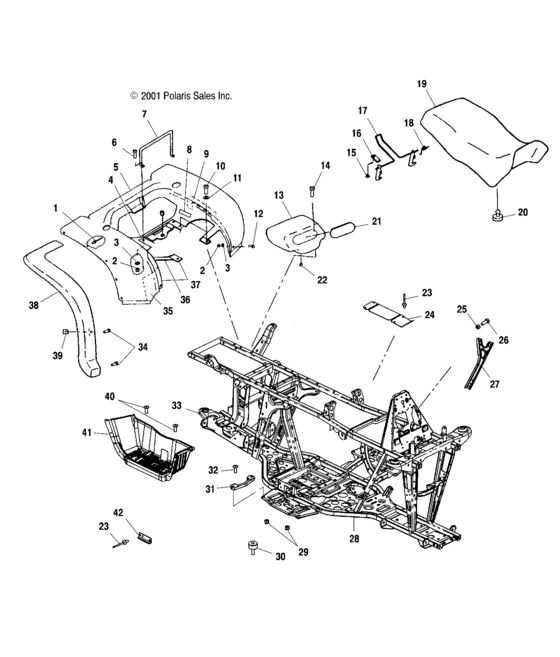

Rear cab/seat/main frame (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661645 Rivet(50) * |
7661645 |
US $1.89 |
||
|
2
|
2
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
3
|
3
7555792 Washer |
7555792 |
US $2.45 |
||
|
4
|
4
5811107 Foil,rear |
5811107 |
US $5.11 |
||
|
5
|
5
5432117-177
Cab-rear,blk met **
AA;CA;CB; |
5432117-177 |
— | ||
|
5
|
5
5432117-053
Cab,rear,gen4,md,yellow
AC; |
5432117-053 |
— | ||
|
5
|
5
5432117-333
Cab-rear,gen 4,sterling spruce
AB; |
5432117-333 |
— | ||
|
6
|
6
7511930 Screw(10) |
7511930 |
US $0.79 |
||
|
7
|
7
5246076
Retainer-seat latch
|
5246076 |
— | ||
|
8
|
8
7079902
Decal,carb/filter info
|
7079902 |
— | ||
|
9
|
9
5811308 Foil,tape,3 x 12 |
5811308 |
US $12.20 |
||
|
10
|
10
7512242 Screw(10) |
7512242 |
US $0.79 |
||
|
11
|
11
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
12
|
12
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
12
|
12
7511989
Screw
|
7511989 |
— | ||
|
13
|
13
5431786 Toolbox |
5431786 |
US $65.99 |
||
|
14
|
14
7517375
Screw
|
7517375 |
— | ||
| replacement | |||||
|
14
|
14
7555748 Washer |
7555748 |
US $2.45 |
||
|
15
|
15
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
16
|
16
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
17
|
17
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
18
|
18
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
19
|
19
2682675-070
Asm., seat, gun metal
|
2682675-070 |
— | ||
|
19
|
19
2682958-070
Covering, seat, black
|
2682958-070 |
— | ||
|
20
|
20
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
21
|
21
5431787 Cover, toolbox |
5431787 |
US $17.24 |
||
|
22
|
22
5410896 Cap,drain (10) |
5410896 |
US $3.75 |
||
|
23
|
23
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
24
|
24
5245762-067
Guard, clutch
If built before 3/12/02; |
5245762-067 |
— | ||
|
25
|
25
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
26
|
26
7512283 Screw, sems |
7512283 |
US $3.26 |
||
|
27
|
27
5244751-067
Brace-support,frame,frt,lh,blk
|
5244751-067 |
— | ||
|
28
|
28
1013214-067
Frame, main
|
1013214-067 |
— | ||
|
29
|
29
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
30
|
30
5411548 Mount,rubberLH Side Only; AA;CA;CB; |
5411548 |
US $14.28 |
||
|
31
|
31
5432280 Spacer,footwell |
5432280 |
US $9.10 |
||
|
32
|
32
7517377 Screw |
7517377 |
US $2.98 |
||
|
33
|
33
7078261
Decal-hitch (1225)
CB;AA, CA if built before 10/22/01; |
7078261 |
— | ||
|
33
|
33
7170509 Decal-hitchAB;AC;AA, CA if built after 10/22/01; |
7170509 |
US $2.28 |
||
|
34
|
34
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
35
|
35
5811111 Foil |
5811111 |
US $28.58 |
||
|
36
|
36
5811087
Foil,(6x1)
|
5811087 |
— | ||
|
37
|
37
5811106 Foil,front |
5811106 |
US $7.09 |
||
|
38
|
38
5431796-070
Guard-mud,rear,lh,blk **
|
5431796-070 |
— | ||
|
38
|
38
5431797-070 Guard-mud,rear,rh,blk ** |
5431797-070 |
US $72.56 |
||
|
39
|
39
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
40
|
40
7517264 Screw (10)LH Side; |
7517264 |
US $1.89 |
||
|
40
|
40
7517376
Screw
RH Side; |
7517376 |
— | ||
| replacement | |||||
|
40
|
40
7512279 Screw(10) *RH Side; |
7512279 |
US $0.79 |
||
|
41
|
41
5432221-070 Footwell,lh,blk,nylon* |
5432221-070 |
US $244.23 |
||
|
41
|
41
5433929-070 Footwell-nylon,rh,service,blk* |
5433929-070 |
US $256.43 |
||
|
42
|
42
5244824-067
Bracket, reservoir
|
5244824-067 |
— | ||
