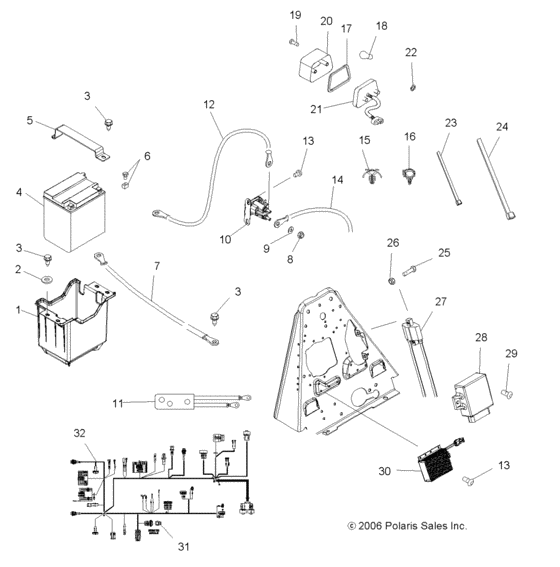

Electrical (A07MH68MA/ME) Diagram Polaris SPORTSMAN 700 MV
- Model code
- A07MH68MA/ME
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5435696 Box-battery ** |
5435696 |
US $15.26 |
||
|
2
|
2
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
3
|
3
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
4
|
4
4010595
Battery-30ah,12 volt,agm-sealed
|
4010595 |
— | ||
|
5
|
5
5247376 Strap-battery,hold down 30 amp |
5247376 |
US $9.91 |
||
|
6
|
6
2203095
Kit, battery bolt
|
2203095 |
— | ||
|
7
|
7
4011139 Cable-blk (battery/frame)com |
4011139 |
US $35.46 |
||
|
8
|
8
7547283
Nut-1/4-20 hx jam-y
|
7547283 |
— | ||
|
9
|
9
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
10
|
10
4011251 Switch-magnetic |
4011251 |
US $64.02 |
||
|
11
|
11
2410535
Harness-winch,prewire
|
2410535 |
— | ||
|
12
|
12
4010471 Cable-red,8,5 battery/solenoid |
4010471 |
US $30.54 |
||
|
13
|
13
7512024 Screw |
7512024 |
US $2.45 |
||
|
14
|
14
4010376 Cable,solenoid/stater,25" |
4010376 |
US $38.41 |
||
|
15
|
15
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
16
|
16
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
|
17
|
17
4032045 Gasket |
4032045 |
US $5.11 |
||
|
18
|
18
4030043 Bulb |
4030043 |
US $4.94 |
||
|
19
|
19
4032029 Screw |
4032029 |
US $2.98 |
||
|
20
|
20
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
21
|
21
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
22
|
22
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
23
|
23
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
24
|
24
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
25
|
25
7512007 Bolt |
7512007 |
US $2.45 |
||
|
26
|
26
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
27
|
27
4010898 Coil-ignition kok |
4010898 |
US $142.80 |
||
|
28
|
28
4011017 Controller-ignition |
4011017 |
US $324.98 |
||
|
29
|
29
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
30
|
30
4011044
Module, controller
|
4011044 |
— | ||
|
31
|
31
4010924
Module-resistor
|
4010924 |
— | ||
|
32
|
32
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
32
|
32
2410556 Harness-main,sportsman 700 cmv |
2410556 |
US $358.47 |
