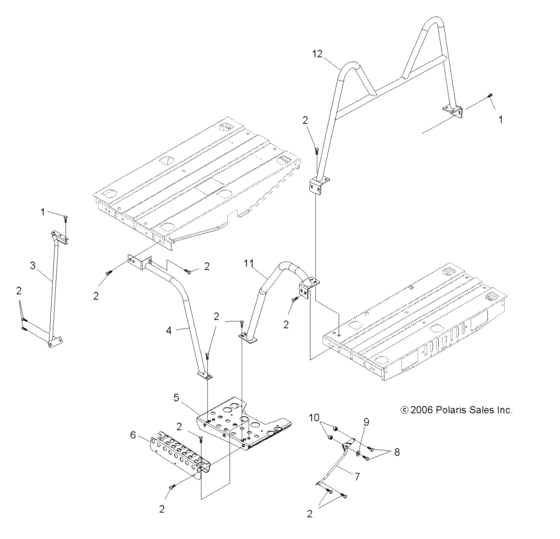

Rollbars (A07MH68MA/ME) Diagram Polaris SPORTSMAN 700 MV
- Model code
- A07MH68MA/ME
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518179 Scr-5/16-18x1,0,flghx,g5,lk-y |
7518179 |
US $3.26 |
||
|
2
|
2
7518181 Scr-5/16-18x3/4,flghx,65,lk-y |
7518181 |
US $3.75 |
||
|
3
|
3
1014945-067
Tube,rear,inside,rh,blk
|
1014945-067 |
— | ||
|
3
|
3
1014944-067
Tube,rear,inside,lh,blk
|
1014944-067 |
— | ||
|
4
|
4
1014926-418 Rear tube,outside,lh,bwrn |
1014926-418 |
US $199.89 |
||
|
4
|
4
1014927-418 Rear tube,outside,rh,bwrn |
1014927-418 |
US $206.78 |
||
|
5
|
5
1014916-418
Plate,footwell,rh,blk wrn
|
1014916-418 |
— | ||
|
5
|
5
1014915-418
Footwell, plate, lh
|
1014915-418 |
— | ||
|
6
|
6
5247274-418 Plate-footwell,outside,lh,bwrn |
5247274-418 |
US $81.24 |
||
|
6
|
6
5247284-418 Plate-footwell,outside,rh,bwrn |
5247284-418 |
US $147.72 |
||
|
7
|
7
1014942-067
Tube,front,inside,lh,blk
|
1014942-067 |
— | ||
|
7
|
7
1014943-067
Tube,front,inside,rh,blk
|
1014943-067 |
— | ||
|
8
|
8
7512240 Bolt |
7512240 |
US $2.45 |
||
|
9
|
9
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
10
|
10
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
11
|
11
1014924-418 Front tube,outside,lh,bwr |
1014924-418 |
US $210.04 |
||
|
11
|
11
1014925-418 Front tube,outside,rh,bwr |
1014925-418 |
US $210.04 |
||
|
12
|
12
1014939-418
Rollbar front,b wrn
|
1014939-418 |
— |
