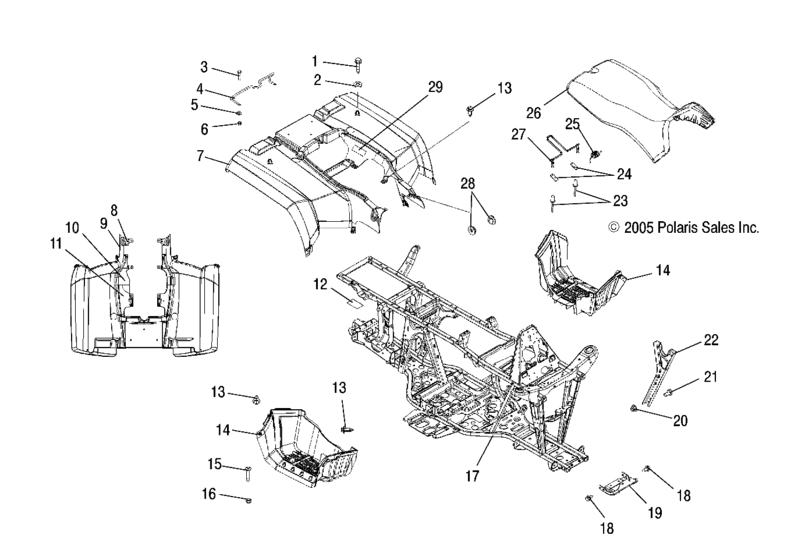

Cab, rear and seat (A06MH76AL/AQ/AT/AX/AY/AZ) Diagram Polaris SPORTSMAN 800 EFI
- Model code
- A06MH76AL
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512095 Screw |
7512095 |
US $6.04 |
||
|
2
|
2
7555798 Washer |
7555798 |
US $6.69 |
||
|
3
|
3
7511930 Screw(10) |
7511930 |
US $0.79 |
||
|
4
|
4
5246076
Retainer-seat latch
|
5246076 |
— | ||
|
5
|
5
7555792 Washer |
7555792 |
US $2.45 |
||
|
6
|
6
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
7
|
7
5436235-402
Cab-rr,spirit,pntd,t,slvr,met,
AL; |
5436235-402 |
— | ||
|
7
|
7
5435664-455 Cab-rr,nbu sub camoAQ;AT; |
5435664-455 |
US $827.19 |
||
|
7
|
7
5436319-400 Cab-rear,camo grn mtAX; |
5436319-400 |
US $408.70 |
||
|
7
|
7
5436319-177 Cab-rear,blk metAY; |
5436319-177 |
US $408.70 |
||
|
7
|
7
5436319-293 Cab-rear,sportsman,indy redAZ; |
5436319-293 |
US $408.70 |
||
|
8
|
8
5812703
Foil, front, top
If built before 10/15/05; |
5812703 |
— | ||
|
8
|
8
5813028 Foil-rear cab,frontIf built after 10/15/05; |
5813028 |
US $27.39 |
||
|
9
|
9
5812702
Foil, front, bottom
If built before 10/15/05; |
5812702 |
— | ||
|
9
|
9
5813029 Foil-rear cab,edgeIf built after 10/15/05; |
5813029 |
US $13.20 |
||
|
10
|
10
5813030 Foil-rear cab,middleIf built after 10/15/05; |
5813030 |
US $13.20 |
||
|
11
|
11
5812701
Foil
|
5812701 |
— | ||
|
12
|
12
7170509 Decal-hitch |
7170509 |
US $2.28 |
||
|
13
|
13
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
14
|
14
5435354-070
Footwell, black, lh
|
5435354-070 |
— | ||
|
14
|
14
5435355-070
Footwell, black, rh
|
5435355-070 |
— | ||
|
15
|
15
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
16
|
16
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
17
|
17
1014951-067
Main frame,blk
|
1014951-067 |
— | ||
|
18
|
18
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
19
|
19
5245767-067 Bumper-brkt,lower,blk |
5245767-067 |
US $47.25 |
||
|
20
|
20
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
21
|
21
7512283 Screw, sems |
7512283 |
US $3.26 |
||
|
22
|
22
5244751-067
Brace-support,frame,frt,lh,blk
|
5244751-067 |
— | ||
|
23
|
23
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
24
|
24
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
25
|
25
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
26
|
26
2683661-070
Seat asm,blk
AQ;AT; |
2683661-070 |
— | ||
|
26
|
26
2683433-070
Seat asm,blk
AL;AX;AY;AZ; |
2683433-070 |
— | ||
|
26
|
26
2683434-070
Covering, seat, black
|
2683434-070 |
— | ||
|
27
|
27
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
28
|
28
5412623 Grommet-rubber mount |
5412623 |
US $2.28 |
||
|
29
|
29
7172921
Decal-filter cleaning
|
7172921 |
— |
