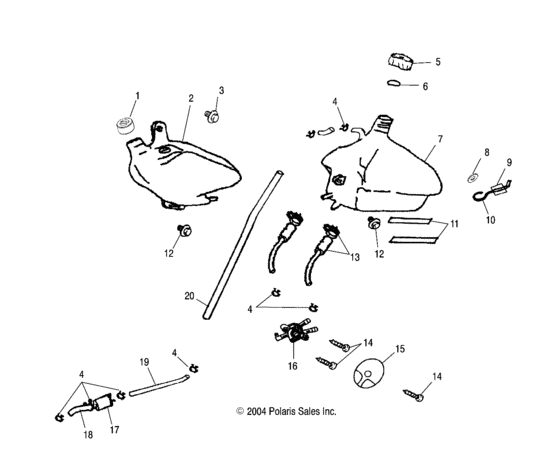

Oil tank/fuel tank (A05FA09CA/CB/CC) Diagram Polaris SPORTSMAN 90
- Model code
- A05FA09CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450903 Cap-oil tank |
0450903 |
US $13.20 |
||
|
2
|
2
0450927
Asm., oil tank
|
0450927 |
— | ||
|
3
|
3
0451035 Bolt,hex(10) |
0451035 |
US $0.79 |
||
|
4
|
4
0450054 Clip(10) * |
0450054 |
US $1.49 |
||
|
5
|
5
0453928 Asm-cap,fuelIncl. 6; |
0453928 |
US $35.58 |
||
|
6
|
6
0453692 Gasket-fuel cap,outlaw |
0453692 |
US $2.66 |
||
|
7
|
7
0451175 Tank-fuel,youth,sprtsmn 90 |
0451175 |
US $277.71 |
||
|
8
|
8
0450041 Washer-plain(10) |
0450041 |
US $3.75 |
||
|
9
|
9
0450826-035 Line-fuel |
0450826-035 |
US $1.28 |
||
|
10
|
10
0450373
Hook-fuel tank 17640-131-000
|
0450373 |
— | ||
|
11
|
11
0450632 Mat,rubber,fuel tank |
0450632 |
US $1.28 |
||
|
12
|
12
0450340
Bolt
|
0450340 |
— | ||
|
13
|
13
0450864 Tube-a fuel |
0450864 |
US $19.30 |
||
|
14
|
14
0450866 Bolt-pan(10)* |
0450866 |
US $2.45 |
||
|
15
|
15
0450636 Knob-fuel shutoff16960-153-000 |
0450636 |
US $14.28 |
||
|
16
|
16
0450996 Manual fuel cup,asm,-(fuel valv |
0450996 |
US $31.52 |
||
|
17
|
17
2520462 Filter-fuel 65 micron |
2520462 |
US $5.90 |
||
|
18
|
18
0450825
Line-fuel*
|
0450825 |
— | ||
|
19
|
19
0450363-220
Hose
|
0450363-220 |
— | ||
|
20
|
20
0450363-440 Line-fuel |
0450363-440 |
US $11.43 |
