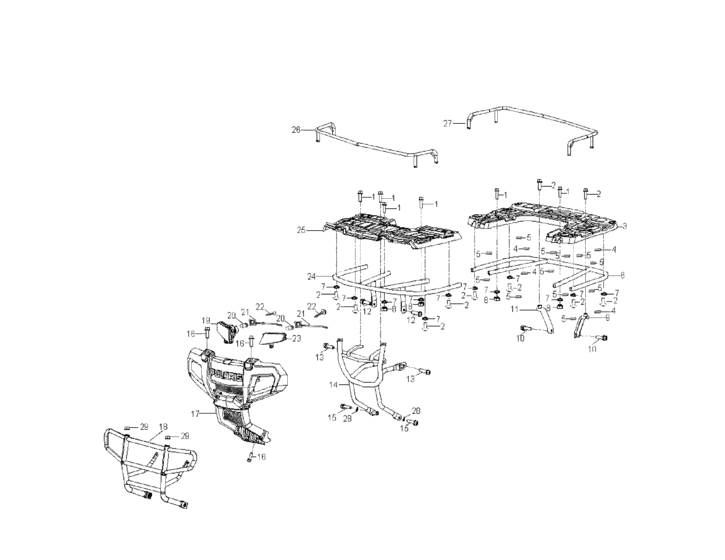

Chassis, bumper (A08FA09AA/AB/AC) Diagram Polaris SPORTSMAN 90
- Model code
- A08FA09AA/AB/AC
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450310 Bolt-hex wshr(10)96318-06032-k |
0450310 |
US $3.75 |
||
|
2
|
2
0453726 Bolt |
0453726 |
US $2.45 |
||
|
3
|
3
0453335-070 Rack-rear,black |
0453335-070 |
US $165.13 |
||
|
4
|
4
0453825 Pad-rack,rubber |
0453825 |
US $1.28 |
||
|
5
|
5
0453824 Pad-rack,rubber |
0453824 |
US $0.79 |
||
|
6
|
6
0453727 Support-rack,rear,black |
0453727 |
US $150.26 |
||
|
7
|
7
0452913 Washer-plain,5x25x2 |
0452913 |
US $1.49 |
||
|
8
|
8
0450808 Nut-lock(10) * |
0450808 |
US $3.75 |
||
|
9
|
9
0453728 Brkt-support,rack,rear,lh,blk |
0453728 |
US $26.41 |
||
|
10
|
10
0450887 Bolt-hex wf(10) |
0450887 |
US $1.89 |
||
|
11
|
11
0453729 Brkt-support,rack,rear,rh,blk |
0453729 |
US $26.41 |
||
|
12
|
12
0454098 BoltAC; |
0454098 |
US $3.94 |
||
|
13
|
13
0453518 Bolt |
0453518 |
US $1.77 |
||
|
14
|
14
0453731-067 Bumper-front,sportsman,blk |
0453731-067 |
US $211.23 |
||
|
15
|
15
0454126 Bolt-bumper,front,sp90AC; |
0454126 |
US $3.94 |
||
|
15
|
15
0453730 BoltAA;AB; |
0453730 |
US $4.73 |
||
|
16
|
16
0452215 Bolt-hex |
0452215 |
US $1.49 |
||
|
17
|
17
0453352-070 Facia-front,black |
0453352-070 |
US $160.74 |
||
|
18
|
18
0454125 Kit-bumper,frnt,sp90,nightcamoIncl. Bumper,19;AC; |
0454125 |
US $438.25 |
||
|
18
|
18
0454095-458 Bumper-frt,metal,sptm90,matblkAC; |
0454095-458 |
US $211.23 |
||
|
19
|
19
0453970 Headlight-rh,sportsman 90 |
0453970 |
US $65.99 |
||
|
20
|
20
0453570 Bulb-headlight |
0453570 |
US $19.83 |
||
|
21
|
21
0453569 Socket-headlight |
0453569 |
US $16.24 |
||
|
22
|
22
0451703 Screw,tapping |
0451703 |
US $1.49 |
||
|
23
|
23
0453969 Headlight-lh,sportsman 90 |
0453969 |
US $65.99 |
||
|
24
|
24
0453732 Support-rack,front,black |
0453732 |
US $211.23 |
||
|
25
|
25
0453334-070 Rack-front,black |
0453334-070 |
US $165.13 |
||
|
26
|
26
0454096-458
Extension-rack,frt,sptm90,matb
AC; |
0454096-458 |
— | ||
|
27
|
27
0454097-458
Extension-rack,rr,sptm90,matbk
AC; |
0454097-458 |
— | ||
|
28
|
28
0450483
Washer-spring(10)*
AA;AB; |
0450483 |
— | ||
|
29
|
29
0453125 Cap-rubberAC; |
0453125 |
US $3.06 |
