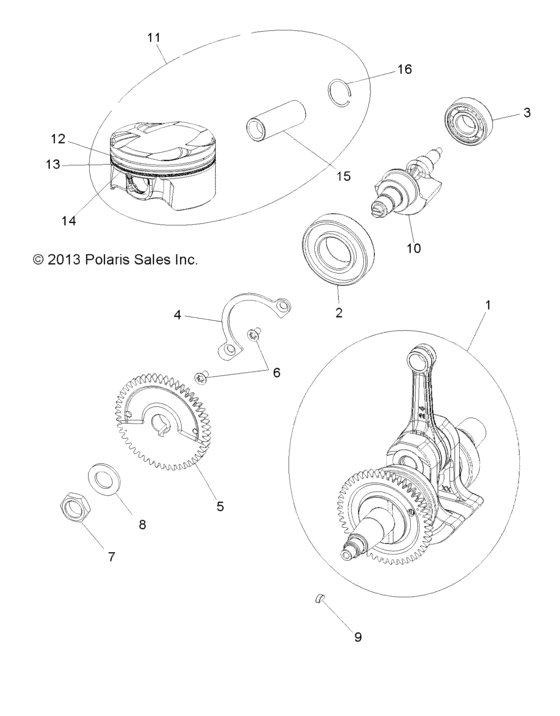

Engine, Crankshaft, Piston And Balance Shaft (A14BH33FJ (49ATVCRANKSHAFT14SP325)) Diagram Polaris SPORTSMAN ACE EU
- Model code
- A14BH33FJ
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3585503 Bearing,ballPTO END |
3585503 |
US $40.25 |
||
|
1
|
1
1204878 ASM-CRANKSHAFT,W/GEARINCL. CRANK ASM. AND GEAR |
1204878 |
US $976.29 |
||
|
2
|
2
3514361
Bearing, ball
|
3514361 |
— | ||
| replacement | |||||
|
2
|
2
3585503 Bearing,ball |
3585503 |
US $40.25 |
||
|
3
|
3
3514749 BEARING-BALL,20X47X14,6204 |
3514749 |
US $32.52 |
||
|
4
|
4
5137851 PLATE-BEARING RETAINER |
5137851 |
US $15.75 |
||
|
5
|
5
6230548 GEAR DRIVEN,BALANCER |
6230548 |
US $114.61 |
||
|
6
|
6
7517598 Screw |
7517598 |
US $9.50 |
||
|
7
|
7
7547488 Nut-hex,m18x1.5 4 jam,rh |
7547488 |
US $4.73 |
||
|
8
|
8
7556568 Washer-19x34x3 |
7556568 |
US $1.49 |
||
|
9
|
9
7721122 Key,woodruff |
7721122 |
US $5.18 |
||
|
10
|
10
1204606 ASM-BALANCER SHAFTINCL. PIN, SHAFT |
1204606 |
US $177.24 |
||
|
10
|
10
5138050 BALANCER SHAFT,MACHINED |
5138050 |
US $91.60 |
||
|
10
|
10
7662032
PIN-BALANCER SHAFT
|
7662032 |
— | ||
|
11
|
11
3022533 ASM-PISTON,78MMINCL. RINGS, PIN, CLIPS |
3022533 |
US $197.14 |
||
|
12
|
12
3022386 RING-PISTON,COMPRESSION,TOP |
3022386 |
US $30.24 |
||
|
13
|
13
3022387 RING-PISTON,COMPRESSION,SECOND |
3022387 |
US $42.53 |
||
|
14
|
14
3022388 RING-PISTON,OIL SCRAPER |
3022388 |
US $92.16 |
||
|
15
|
15
3022512 PISTON PIN,18MM |
3022512 |
US $121.31 |
||
|
16
|
16
7710673 CIRCLIP-PISTON |
7710673 |
US $26.29 |
||
