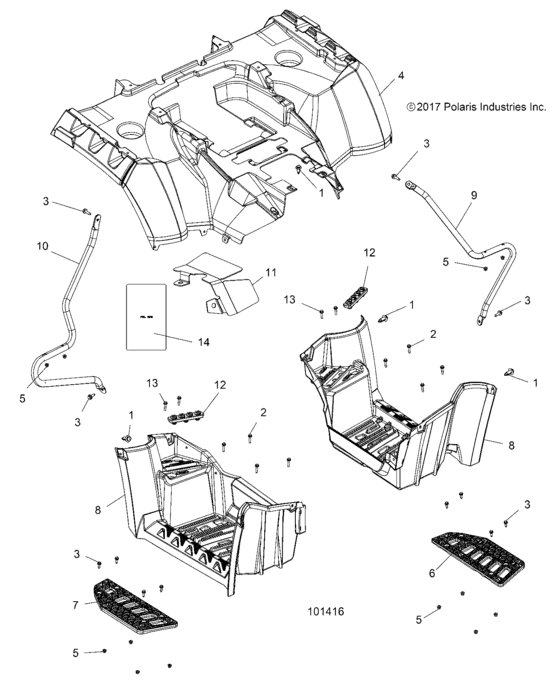

Body, Rear Cab And Footwell (A18SYS95CU/EU) Diagram Polaris SPORTSMAN TOURING 1000 TRACTOR
- Model code
- A18SYS95CU/EU
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
2
|
2
7519202 Screw, flange |
7519202 |
US $6.56 |
||
|
3
|
3
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
4
|
4
5453802-402 Cab-Rear,spmn Tour,pntd,t.slv |
5453802-402 |
US $502.22 |
||
|
5
|
5
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
6
|
6
5437600 Support-footpad,lh |
5437600 |
US $30.54 |
||
|
7
|
7
5437601 Support-footpad,rh |
5437601 |
US $32.48 |
||
|
8
|
8
5437888-070 Footwell-lh,blk |
5437888-070 |
US $244.23 |
||
|
8
|
8
5453691-070 FOOTWELL-RH,MOD,BLK |
5453691-070 |
US $233.42 |
||
|
9
|
9
5338574-329 TUBE-FOOTWELL SUPPORT,LH,BLK |
5338574-329 |
US $96.51 |
||
|
10
|
10
5338575-329 TUBE-FOOTWELL SUPPORT,RH,BLK |
5338575-329 |
US $91.60 |
||
|
11
|
11
5259879 SHIELD-HEAT,FOOTWELL,PASS,RH |
5259879 |
US $20.28 |
||
|
12
|
12
5413165 Pad-footwell,short |
5413165 |
US $19.30 |
||
|
13
|
13
7518579 Scr-hxflghd,m6x40,0600086 |
7518579 |
US $1.49 |
||
|
14
|
14
5814113 SHIELD-HEAT,FOIL,FRAME |
5814113 |
US $26.41 |
