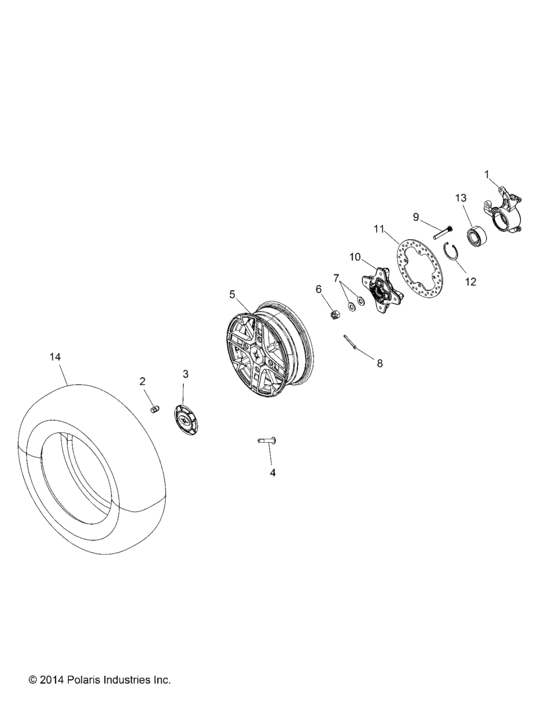

Wheels, Front And Hub (A18SYS95CU/EU (49ATVWHEELFRT15TR1000)) Diagram Polaris SPORTSMAN TOURING 1000 TRACTOR
- Model code
- A18SYS95CU/EU
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1822945
Asm., steering knuckle, lh
INCL. 12,13 |
1822945 |
— | ||
|
1
|
1
1822946
Asm., steering knuckle, rh
INCL. 12,13 |
1822946 |
— | ||
|
1
|
1
5136733
Knuckle-steering,mach,lh
|
5136733 |
— | ||
|
1
|
1
5136734
Knuckle-steering,mach,rh
|
5136734 |
— | ||
| replacement | |||||
|
1
|
1
2204255 Kit-knuckle asm,rh |
2204255 |
US $460.08 |
||
|
2
|
2
7547361 Nut-wheel,m10x1,25,tapered |
7547361 |
US $5.25 |
||
|
3
|
3
1521999-067 CAP-RIM,GLOSS BLK |
1521999-067 |
US $31.75 |
||
|
4
|
4
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
5
|
5
1522100-067 RIM-FR,CAST,14X5.5-46.7 OFFSETINCL. COVER |
1522100-067 |
US $284.01 |
||
|
6
|
6
7547406 Nut-castle,m18x1,5x13 |
7547406 |
US $5.25 |
||
|
7
|
7
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
8
|
8
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
9
|
9
7518671 Stud-wheel,m10x1,25x58 |
7518671 |
US $3.94 |
||
|
10
|
10
5135499 Hub-wheel,mach |
5135499 |
US $88.60 |
||
|
11
|
11
5250205 Disc-brake,246mm od,4,75 |
5250205 |
US $95.38 |
||
|
12
|
12
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
13
|
13
3514699 Bearing-ball,sealed,44x72x33.1 |
3514699 |
US $49.23 |
||
|
14
|
14
5415792 TIRE-CARL PXT,AT26X9R14,EMARK |
5415792 |
US $153.62 |
||
