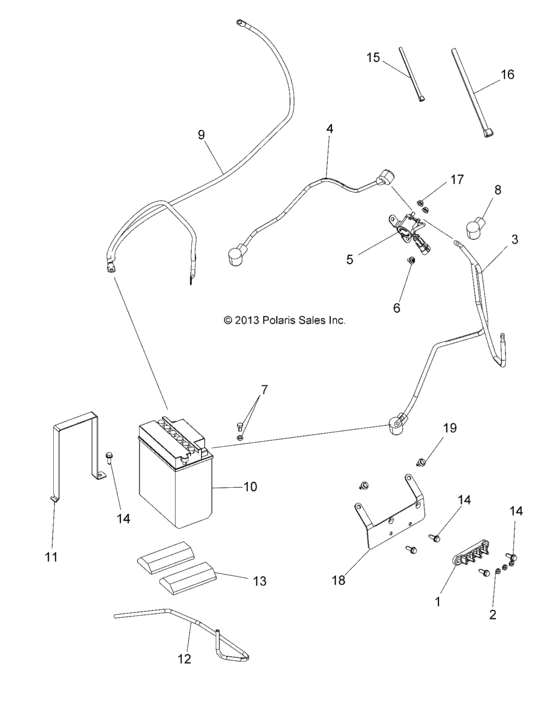

Electrical, Battery (A14DH57FJ (49ATVBATTERY14570)) Diagram Polaris SPORTSMAN TOURING 570 EFI INTL
- Model code
- A14DH57FJ
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4011892 Block-terminal,3 post |
4011892 |
US $13.20 |
||
|
2
|
2
7547341 Nuts-10-32 keps |
7547341 |
US $0.79 |
||
|
3
|
3
4014535 Cable-batt,6ga,rd,batt/sol/tb |
4014535 |
US $67.13 |
||
|
4
|
4
4014424-845 CABLE-BATT,6GA,RD,FLAT,FLAT,M6 |
4014424-845 |
US $38.61 |
||
|
5
|
5
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
| replacement | |||||
|
5
|
5
4014471 Solenoid-starter,c1100,w/wshr |
4014471 |
US $118.11 |
||
|
6
|
6
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
7
|
7
2202213 Kit-battery bolt (long) |
2202213 |
US $2.28 |
||
|
8
|
8
4011723 Boot-battery,red |
4011723 |
US $5.92 |
||
|
9
|
9
4014547 Cable-batt,6ga,bk,bat/start/tb |
4014547 |
US $45.47 |
||
|
10
|
10
4140006 Battery |
4140006 |
US $275.60 |
||
|
11
|
11
5257766 Brkt-battery strap |
5257766 |
US $9.15 |
||
|
12
|
12
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
13
|
13
5813293 Pad-rear,toolbox |
5813293 |
US $7.09 |
||
|
14
|
14
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
17
|
17
7547270
Nut-hxflghd,m6,serrated
|
7547270 |
— | ||
|
18
|
18
5257803 Brkt-fuse block |
5257803 |
US $8.17 |
||
|
19
|
19
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
