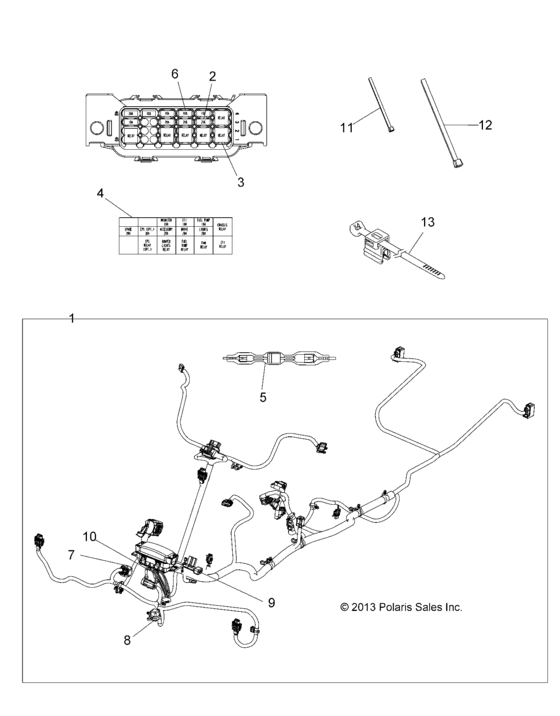

Electrical, Harness (A14DH57FJ (49ATVHARNESS14570TI)) Diagram Polaris SPORTSMAN TOURING 570 EFI INTL
- Model code
- A14DH57FJ
- Year
- 2014
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2412487 HARNESS-MAIN,570 EFI,TOUR,INTLINCL COVER |
2412487 |
US $1,462.37 |
||
|
1
|
1
4015011 COVER-FUSEBOX,48WAY |
4015011 |
US $46.69 |
||
|
2
|
2
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
3
|
3
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
4
|
4
7179841 Label-fuse box,eps |
7179841 |
US $6.11 |
||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
7
|
7
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
8
|
8
2410692 Breaker-circuit,10 amp,sealed |
2410692 |
US $12.20 |
||
|
9
|
9
2410000 Diode-6 amp |
2410000 |
US $19.30 |
||
|
10
|
10
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
11
|
11
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
12
|
12
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
13
|
13
7081808 Strap-cable tie w/edge clip |
7081808 |
US $4.34 |
