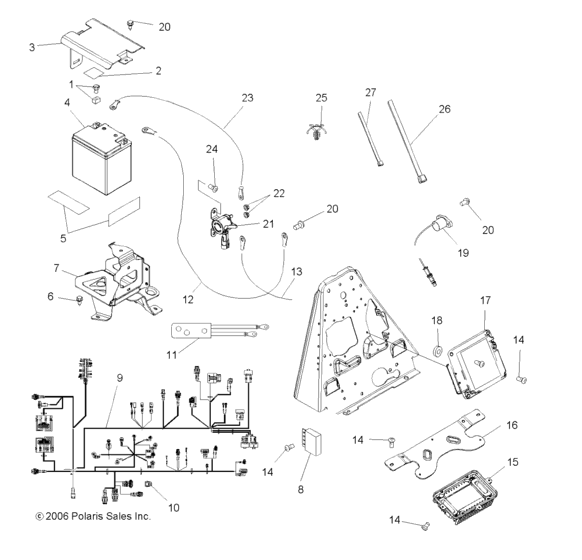

Electrical (A07TH50EA) Diagram Polaris SPORTSMAN X2 500 EFI QUAD
- Model code
- A07TH50EA
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2202213 Kit-battery bolt (long) |
2202213 |
US $2.28 |
||
|
2
|
2
5813165
Pad-battery,1,75"
|
5813165 |
— | ||
|
3
|
3
5250933 Shield-heat,battery |
5250933 |
US $40.95 |
||
|
4
|
4
4011224 Battery-sealed,30-ah,360 cca |
4011224 |
US $227.38 |
||
|
5
|
5
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
6
|
6
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
7
|
7
1015903-067
Box, battery, black
|
1015903-067 |
— | ||
|
8
|
8
4011553
Module-flash/turn
|
4011553 |
— | ||
|
9
|
9
2203800
Kit-harness,tps,atv/ranger sng
|
2203800 |
— | ||
| replacement | |||||
|
9
|
9
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
9
|
9
2410752 Harness-main,trek quadIncl. 10, All Harness Kits, Fuse Link Kits; |
2410752 |
US $672.11 |
||
|
9
|
9
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
9
|
9
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
9
|
9
2876315 Kit-harness,eng map sensor tef |
2876315 |
US $167 |
||
|
9
|
9
2875900 Kit-harness,engine air temp |
2875900 |
US $162.26 |
||
|
9
|
9
2875901 Kit-harness,engine injector |
2875901 |
US $165.43 |
||
|
10
|
10
4010924
Module-resistor
|
4010924 |
— | ||
|
11
|
11
2410860
Harness-winch,prewire,x2
|
2410860 |
— | ||
|
12
|
12
4011552 Cable-grd(frame/battery)com |
4011552 |
US $12.20 |
||
|
13
|
13
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
14
|
14
7512024 Screw |
7512024 |
US $2.45 |
||
|
15
|
15
4011657 Control-module,x2,500efi |
4011657 |
US $984.36 |
||
|
16
|
16
5249459 Brkt-pdm, mount, plated |
5249459 |
US $16.24 |
||
|
17
|
17
4012443
Module-engine control,service
|
4012443 |
— | ||
|
18
|
18
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
19
|
19
4011834
Coil-ignition,500efi
|
4011834 |
— | ||
| replacement | |||||
|
19
|
19
4015072 COIL-IGNITION,SINGLE,W/DIODE |
4015072 |
US $179.13 |
||
|
19
|
19
4011692 Wire-spark plug,single,200mm |
4011692 |
US $70.28 |
||
|
20
|
20
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
21
|
21
4010947
Solenoid, starter
|
4010947 |
— | ||
| replacement | |||||
|
21
|
21
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
|
22
|
22
7547270
Nut-hxflghd,m6,serrated
|
7547270 |
— | ||
|
23
|
23
4011360 Cable-bat/sol,red |
4011360 |
US $28.58 |
||
|
24
|
24
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
25
|
25
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
26
|
26
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
27
|
27
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
