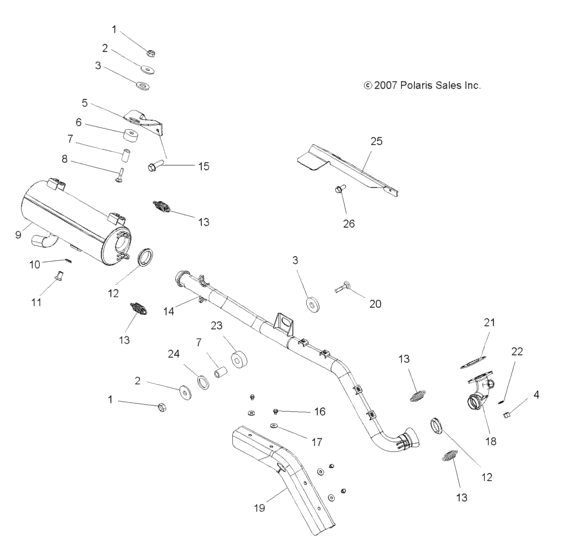

Engine, exhaust system (A08TN50EA) Diagram Polaris SPORTSMAN X2 500 EFI QUAD
- Model code
- A08TN50EA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
2
|
2
7555716 Washer |
7555716 |
US $2.45 |
||
|
3
|
3
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
4
|
4
3087199 Nut |
3087199 |
US $1.49 |
||
|
5
|
5
5249688 Brkt-exhaust mnt,plated,trek |
5249688 |
US $16.24 |
||
|
6
|
6
5412659 Dampener-vibration |
5412659 |
US $2.98 |
||
|
7
|
7
5010192 Bushing |
5010192 |
US $4.94 |
||
|
8
|
8
7515316 Bolt |
7515316 |
US $2.98 |
||
|
9
|
9
1261705-489
Weld-silencer,trek quad,pwdr
|
1261705-489 |
— | ||
|
10
|
10
7556230 Washer-clean out ,51x,75x,09 (1 |
7556230 |
US $0.79 |
||
|
11
|
11
7512666 Bolt |
7512666 |
US $3.75 |
||
|
12
|
12
5243518 Seal,exhaust |
5243518 |
US $35.12 |
||
|
13
|
13
7041804 Spring |
7041804 |
US $9.85 |
||
|
14
|
14
1261698-489 Weld-exhaust pipe,1,625 od,blk |
1261698-489 |
US $243.72 |
||
|
15
|
15
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
16
|
16
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
17
|
17
7555935 Washer |
7555935 |
US $3.26 |
||
|
18
|
18
1261734-489 Weld-mnfld,1,625 od,quad,pwdr |
1261734-489 |
US $128.21 |
||
|
19
|
19
5250373 Shield-heat,exhaust |
5250373 |
US $31.48 |
||
|
20
|
20
7518660 Bolt-carr 5/16-18x2 1/4"gr5-y |
7518660 |
US $7.68 |
||
|
21
|
21
3085075 Asm,,gasket(exhaust) |
3085075 |
US $50.19 |
||
|
22
|
22
3080051
Washer, spring
|
3080051 |
— | ||
| replacement | |||||
|
22
|
22
3080530 Washer, spring lock |
3080530 |
US $1.89 |
||
|
23
|
23
5412659 Dampener-vibration |
5412659 |
US $2.98 |
||
|
24
|
24
7556401 Bushing(10) |
7556401 |
US $3.75 |
||
|
25
|
25
5251564
Shield-heat,exhaust
|
5251564 |
— | ||
|
26
|
26
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
