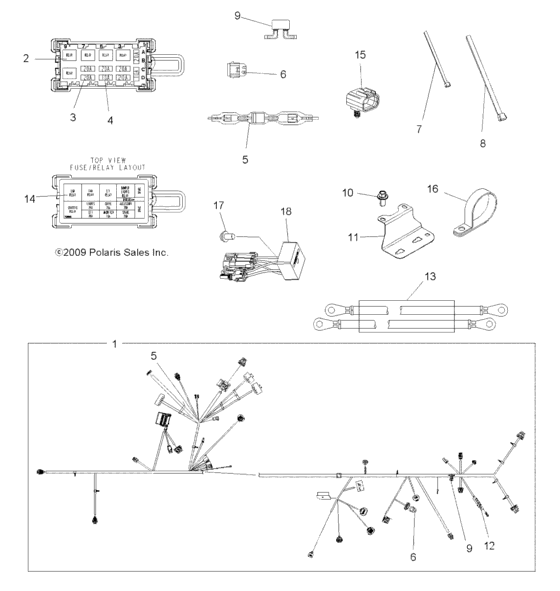

Electrical, harness (A10TN55AL/AX) Diagram Polaris SPORTSMAN X2 550
- Model code
- A10TN55AL/AX
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2411414 Harness-main,550,x2Incl. 1-6,9,12,14, All Kits; |
2411414 |
US $974.93 |
||
|
2
|
2
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
3
|
3
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
4
|
4
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
4010924
Module-resistor
|
4010924 |
— | ||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
9
|
9
2411228 Breaker-circut,8 amp,sealed |
2411228 |
US $29.28 |
||
|
10
|
10
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
||
|
11
|
11
5250452 Brkt-mount,fuse block |
5250452 |
US $17.24 |
||
|
12
|
12
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
12
|
12
2203632 Kit-fusible link,2mm,6mm ring |
2203632 |
US $18.32 |
||
|
13
|
13
2411209 Harness, winch, pre-wire |
2411209 |
US $76.81 |
||
|
14
|
14
7175140 Label-fuse box,550 |
7175140 |
US $14.28 |
||
|
15
|
15
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
16
|
16
7080807
Clamp-hose
|
7080807 |
— | ||
|
17
|
17
7518418 Scr-1/4-20x1,50-hx/tap-r,mag |
7518418 |
US $1.77 |
||
|
18
|
18
4012829 Relay, solid state,9a,long ld |
4012829 |
US $72.96 |
