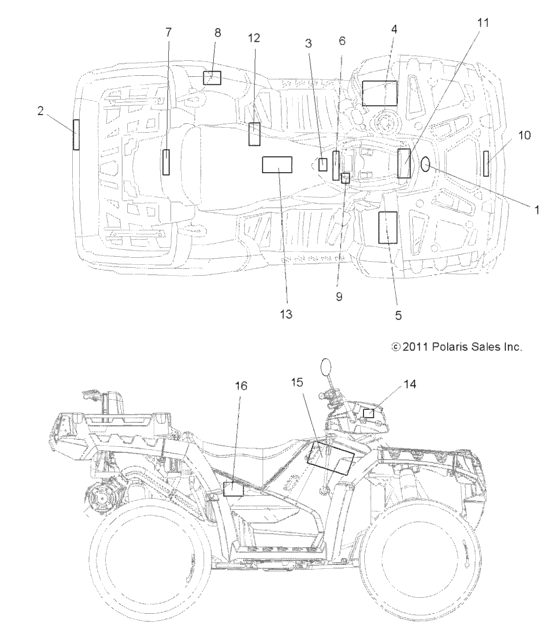

Body, Decals (A12TN55FA (49ATVDECAL12SPX2550I)) Diagram Polaris SPORTSMAN X2 550 INTL
- Model code
- A12TN55FA
- Year
- 2012
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
2
|
2
7177164 Decal-rear,versa trak |
7177164 |
US $9.15 |
||
|
3
|
3
7173027 Decal, age warning, 16 |
7173027 |
US $17.85 |
||
|
4
|
4
7174362 Decal, warning, general, cpsc, 2-up |
7174362 |
US $36.80 |
||
|
5
|
5
7174361 Decal, warning, discretionary |
7174361 |
US $22.31 |
||
|
6
|
6
7175512 Decal, warning, override, 4x4 switch |
7175512 |
US $3.99 |
||
|
7
|
7
7173890 Decal, warning, container/passenger |
7173890 |
US $9 |
||
|
8
|
8
7177975
Decal, Warning, Tire/load, 7, 7, 735
|
7177975 |
— | ||
|
9
|
9
7174569 Decal-ignigtion lighting |
7174569 |
US $4.34 |
||
|
10
|
10
7175847
Decal, warning, front rack, 120
|
7175847 |
— | ||
|
11
|
11
7175819 Decal-lens cover,xp |
7175819 |
US $22.45 |
||
|
12
|
12
7175883 Decal-clutch,retaining bolt |
7175883 |
US $1.66 |
||
|
13
|
13
7175826 Decal, warning, clutch cover, quad |
7175826 |
US $34.65 |
||
|
14
|
14
7176823
Decal-pod,x2
|
7176823 |
— | ||
|
15
|
15
7177819
Decal-side,sportsman 550,rh
|
7177819 |
— | ||
|
15
|
15
7177836
Decal-side,sportsman 550,lh
|
7177836 |
— | ||
|
16
|
16
7176820 Decal-rear,awd,lh |
7176820 |
US $9.15 |
||
|
16
|
16
7176821 Decal-rear,awd,rh |
7176821 |
US $9.15 |
