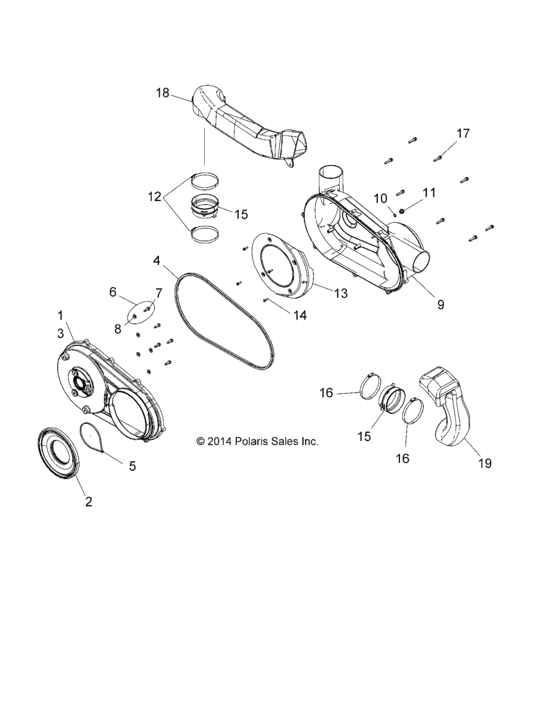

Body, Clutch Cover (A18SWE57B1 (49ATVCLUTCHCVR1570TRG)) Diagram Polaris SPORTSMAN X2 570 EFI EPS
- Model code
- A18SWE57B1
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2634896 Asm-clutch cover,innerINCL. COVER,2,3,4 |
2634896 |
US $96.51 |
||
|
2
|
2
5414727 Seal-cover,clutch,inner |
5414727 |
US $65.24 |
||
|
3
|
3
5450209-070
Cover, Clutch Inner, Black
|
5450209-070 |
— | ||
|
4
|
4
5521738 Seal-outer clutch cover |
5521738 |
US $45.17 |
||
| replacement | |||||
|
4
|
4
5526450 SEAL-OUTER CLUTCH COVER |
5526450 |
US $45.17 |
||
|
5
|
5
7082260 STRAP-TIE,SS,14" |
7082260 |
US $5.25 |
||
|
6
|
6
7517599 Asm,,bolt /washer,88 |
7517599 |
US $3.94 |
||
|
7
|
7
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
8
|
8
7555748 Washer |
7555748 |
US $2.45 |
||
|
9
|
9
2634897 Asm-cover,clutch,outerINCL. COVER,PLUG,O-RING,12,13 |
2634897 |
US $200.39 |
||
|
10
|
10
5410542
O-ring
|
5410542 |
— | ||
| replacement | |||||
|
10
|
10
5411432 O ring (10) |
5411432 |
US $39.70 |
||
|
11
|
11
5434264 Plug-Drain |
5434264 |
US $3.15 |
||
|
12
|
12
7081626 Clamp-worm drive,3,69 dia |
7081626 |
US $6.69 |
||
|
13
|
13
5450420 Cover-clutch,intake,baffle |
5450420 |
US $81.76 |
||
|
14
|
14
7512026
Screw
|
7512026 |
— | ||
|
15
|
15
5414768 Boot-duct,clutch |
5414768 |
US $9.15 |
||
|
16
|
16
7081626 Clamp-worm drive,3,69 dia |
7081626 |
US $6.69 |
||
|
17
|
17
7519849 Scr-#14x1-1/4,hi/lo/taper-y |
7519849 |
US $0.79 |
||
|
18
|
18
5451354 DUCT-AIR INLET,CLUTCH,TOUR |
5451354 |
US $61.72 |
||
|
18
|
18
5413465 Pad-foam shim,trunk |
5413465 |
US $1.66 |
||
|
19
|
19
5450546 DUCT-CLUTCH OUTLET |
5450546 |
US $43.54 |
||
