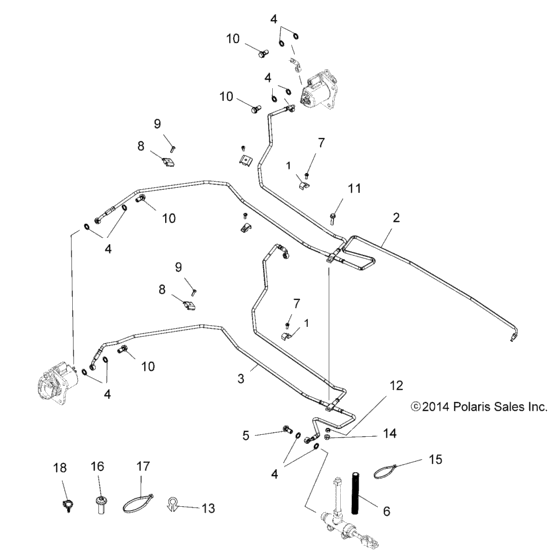

Brakes, Rear Brake Lines (A15SWE57FA (49ATVBRAKELINERR15X2EU)) Diagram Polaris SPORTSMAN X2 570 EFI EPS EU
- Model code
- A15SWE57FA
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7081940 CLIP-HALF-Y |
7081940 |
US $1.49 |
||
|
2
|
2
1912414 LINE-BRK,REAR,SV,T,90F,45B,45B |
1912414 |
US $153.62 |
||
|
3
|
3
1912413 LINE-BRK,REAR,AUXT,70R,70B,70B |
1912413 |
US $153.62 |
||
|
4
|
4
5413212 Seal-stat-o-3/8,70ep |
5413212 |
US $100.30 |
||
|
5
|
5
1910958
Bolt-banjo, 10mm x 1,25-6g
|
1910958 |
— | ||
|
6
|
6
8360052-25
Tubing, convoluted
|
8360052-25 |
— | ||
|
7
|
7
7512024 Screw |
7512024 |
US $2.45 |
||
|
8
|
8
7670126 Clip-retaining,dual ,250" line |
7670126 |
US $2.98 |
||
|
9
|
9
7517756 Screw,10-24x5/8 (10) |
7517756 |
US $1.89 |
||
|
10
|
10
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
11
|
11
7515153 Screw |
7515153 |
US $2.45 |
||
|
12
|
12
7542105 Nut hex |
7542105 |
US $3.26 |
||
|
13
|
13
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
14
|
14
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
17
|
17
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
18
|
18
4020149 Clip,rosebud |
4020149 |
US $7.88 |
