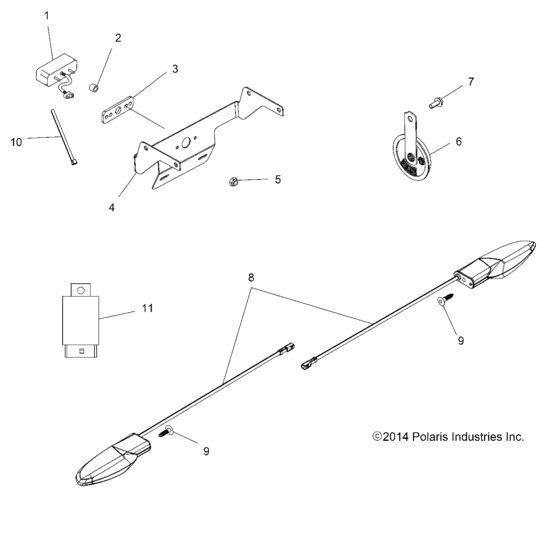

Electrical, Turn Signals And Horn (A15SWE57FA (49ATVTURNSIG15X2EU)) Diagram Polaris SPORTSMAN X2 570 EFI EPS EU
- Model code
- A15SWE57FA
- Year
- 2015
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410629 Light-license plate,black |
2410629 |
US $42.77 |
||
|
2
|
2
5134403 Spcr-lp light,5,0x8,0x4,0,al |
5134403 |
US $2.28 |
||
|
3
|
3
5812520 Spacer-lp light |
5812520 |
US $27.56 |
||
|
4
|
4
5250025-458 BRKT-REGISTRATION PLATE,M.BLK |
5250025-458 |
US $45.76 |
||
|
5
|
5
7546601
Nut, nylok(10)
|
7546601 |
— | ||
|
6
|
6
4011579 Horn-disc |
4011579 |
US $81.76 |
||
|
7
|
7
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
8
|
8
2411114-463 Signal-turn,blk |
2411114-463 |
US $61.06 |
||
|
9
|
9
7518546 Scr-m6x1,0x20mm,tx,ph,8,8-b |
7518546 |
US $0.79 |
||
|
10
|
10
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
11
|
11
4013043 Module-flasher,led |
4013043 |
US $137.81 |
