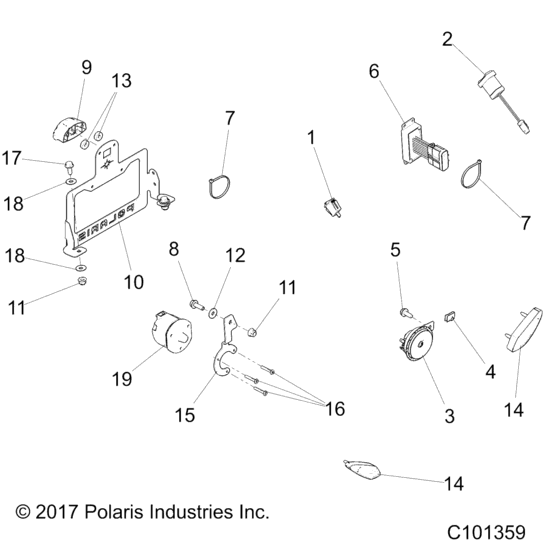

Electrical, Turn Signals (A18SXE95FR (C101359)) Diagram Polaris SPORTSMAN XP 1000 EU
- Model code
- A18SXE95FR
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4015821 SWITCH-WORK LIGHT,ILLUMINATED |
4015821 |
US $64.77 |
||
|
2
|
2
4016507 SWITCH-DRIVEMODE,3MODE,ATV |
4016507 |
US $132.34 |
||
|
3
|
3
4011579 Horn-disc |
4011579 |
US $81.76 |
||
|
4
|
4
7670096 Nut (10) |
7670096 |
US $1.77 |
||
|
5
|
5
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
||
|
6
|
6
4017177 Module-Flash,turn,trailer,trcFROM 10/30/2017 |
4017177 |
US $89.79 |
||
|
6
|
6
4016552 MODULE-FLASH,TURN,TRAILER,TRCTO 10/30/2017 |
4016552 |
US $270.20 |
||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7518514
Bolt-m8x1,25x25,hxflg-olive d
|
7518514 |
— | ||
|
9
|
9
2413838 LIGHT-LICENSE PLATE,TRACTR,BLK |
2413838 |
US $118.16 |
||
|
10
|
10
5263825-458 Brkt-Rr,lic Plate,spm,trc,blk |
5263825-458 |
US $39.04 |
||
|
11
|
11
7547332
Nut-m8x1,25,flg,nyloc-olive d
|
7547332 |
— | ||
|
12
|
12
7555960 Washer,flat |
7555960 |
US $5.25 |
||
|
13
|
13
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
14
|
14
2413816 Signal-Turn,front,trc |
2413816 |
US $36.86 |
||
|
15
|
15
5263450-458 Brkt-Trailer Socket,m.blk |
5263450-458 |
US $14.16 |
||
|
16
|
16
7512025 Screw |
7512025 |
US $3.26 |
||
|
17
|
17
7519780 Scr-hwh-m8x1.25x20 tap/r zpb |
7519780 |
US $2.98 |
||
|
18
|
18
7555734 Washer,flat(10) |
7555734 |
US $0.79 |
||
|
19
|
19
4012558 Connector, 7-way, trailer |
4012558 |
US $31.66 |
