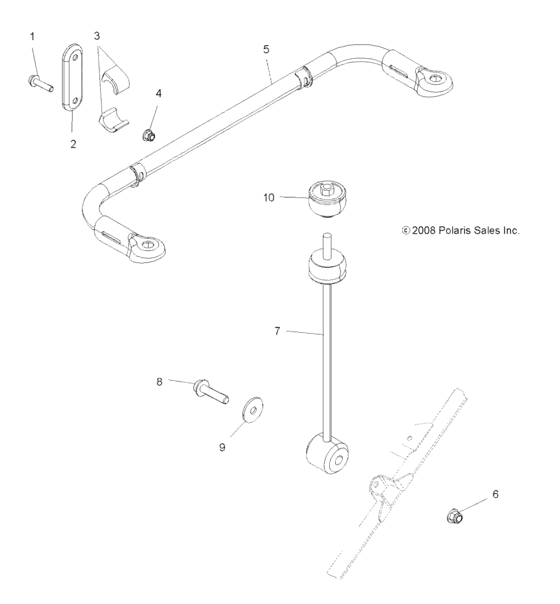

Suspension, stabilizer bar (A09ZN55FX) Diagram Polaris SPORTSMAN XP 550 INTL
- Model code
- A09ZN55FX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518450
Bolt-m8x20-1,25 hx hd flg
|
7518450 |
— | ||
|
2
|
2
5250215 Brkt-stabilizer bar |
5250215 |
US $2.28 |
||
|
3
|
3
5437423
Bushing-torsion bar
|
5437423 |
— | ||
|
4
|
4
7547317
Nut-m8x1,25,hxflg,nylon ins
|
7547317 |
— | ||
|
5
|
5
1016515-067 Weld-stabilizer bar,blk |
1016515-067 |
US $250.51 |
||
|
6
|
6
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
7
|
7
1542608 Linkage-stabilizer bar |
1542608 |
US $42.75 |
||
|
8
|
8
7518474 Bolt-m10x1,5x55,hx hd flg |
7518474 |
US $3.26 |
||
|
9
|
9
7555852 Washer, flat |
7555852 |
US $4.59 |
||
|
10
|
10
5413586 Bushing-lnkg torbar,duro60,itw |
5413586 |
US $7.09 |
