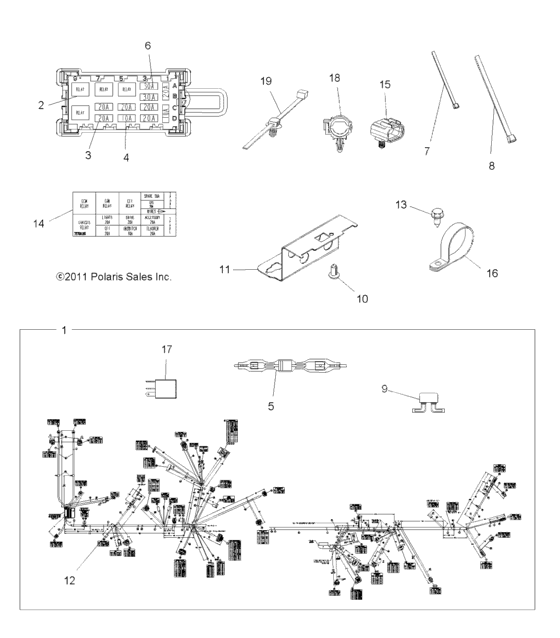

Electrical, Harness (A12DN5EFR (49ATVHARNESS12SPTRGEPS550I)) Diagram Polaris SPORTSMAN XP 550 TOURING EPS INTL
- Model code
- A12DN5EFR
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
-
|
-
2204890 Kit-harness,resistor moduleFor Gear Position |
2204890 |
US $123.46 |
||
|
1
|
1
2411401 Harness-main,550,tour,eps,intlIncl. 1-6,9,12,14,17, All Kits |
2411401 |
US $755.30 |
||
|
1
|
1
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
1
|
1
5438758 Cover-relay/fuse center |
5438758 |
US $12.79 |
||
|
2
|
2
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
3
|
3
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
4
|
4
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
2434015
Fuse,main,30 amp,(10)
|
2434015 |
— | ||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
9
|
9
2410692 Breaker-circuit,10 amp,sealed |
2410692 |
US $12.20 |
||
|
10
|
10
7670125 Fastner-push-on clip,,250 |
7670125 |
US $7.30 |
||
|
11
|
11
5253502 Brkt-fuse block |
5253502 |
US $4.53 |
||
|
12
|
12
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
12
|
12
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
13
|
13
7512095 Screw |
7512095 |
US $6.04 |
||
|
14
|
14
7175635 Label, fuse box |
7175635 |
US $2.45 |
||
|
15
|
15
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
16
|
16
7080807
Clamp-hose
|
7080807 |
— | ||
|
17
|
17
2204853 Kit-relay,eps,repairIncl. 4010725, Wire Harness, Repair, Connectors, Shrink Tubes, Instructions |
2204853 |
US $67.34 |
||
|
18
|
18
7670116 Clip,routing,,472 b,d,,hinged |
7670116 |
US $3.94 |
||
|
19
|
19
7081496
Clip-routing
|
7081496 |
— |
