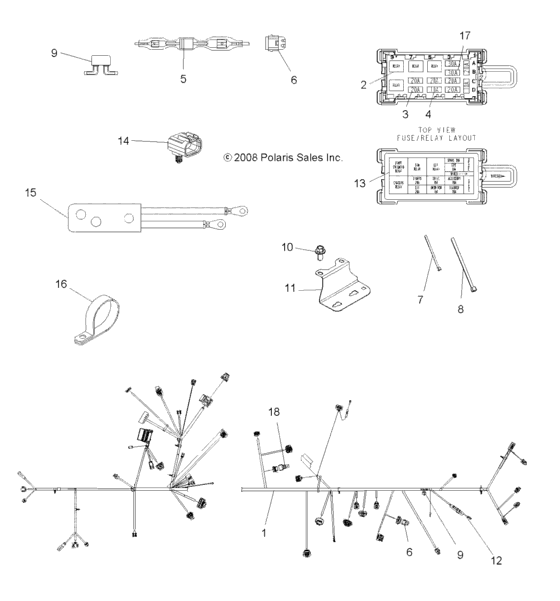

Electrical, harness (A09ZX85FS/CFS) Diagram Polaris SPORTSMAN XP 850 EPS INTL
- Model code
- A09ZX85FS/CFS
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2411328 Harness-main,twin,int'lIncl. 2-6,9,12-14,17,18, All Kits; |
2411328 |
US $760.73 |
||
|
1
|
1
2877771 Kit, harness, handlebar switch |
2877771 |
US $181.18 |
||
|
1
|
1
2877772 Kit, harness, handlebar switch |
2877772 |
US $127.80 |
||
|
1
|
1
2877773 Kit, harness, handlebar switch |
2877773 |
US $128.89 |
||
|
2
|
2
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
3
|
3
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
4
|
4
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
4010924
Module-resistor
|
4010924 |
— | ||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
9
|
9
2410881 Breaker-circuit,20 amp,sealed |
2410881 |
US $56.14 |
||
|
10
|
10
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
||
|
11
|
11
5250452 Brkt-mount,fuse block |
5250452 |
US $17.24 |
||
|
12
|
12
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
12
|
12
2203632 Kit-fusible link,2mm,6mm ring |
2203632 |
US $18.32 |
||
|
13
|
13
7175636 Label-fuse box |
7175636 |
US $2 |
||
|
14
|
14
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
15
|
15
2411186
Harness-winch prewire
|
2411186 |
— | ||
|
16
|
16
7080807
Clamp-hose
|
7080807 |
— | ||
|
17
|
17
2434015
Fuse,main,30 amp,(10)
|
2434015 |
— | ||
|
18
|
18
7512113 BoltRelay Mounting;Not Included w/4011407; |
7512113 |
US $2.45 |
||
|
18
|
18
4011407 Relay |
4011407 |
US $34.67 |
||
|
18
|
18
7542105 Nut hexRelay Mounting;Not Included w/4011407; |
7542105 |
US $3.26 |
