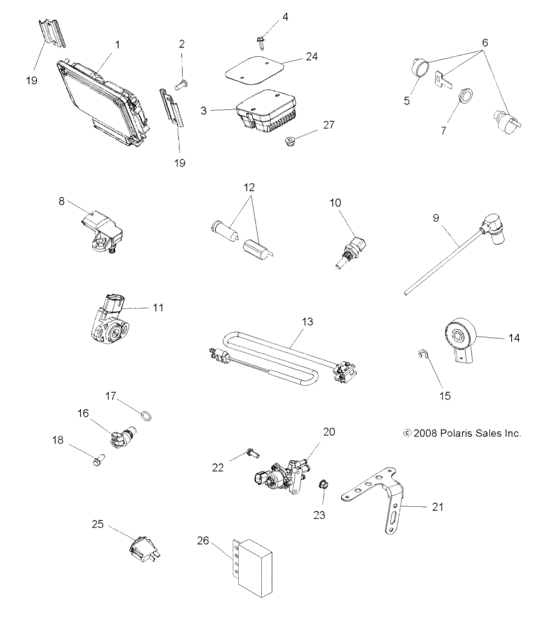

Electrical, switches, sensors, ecu and control modules (A09ZX85FS/CFS) Diagram Polaris SPORTSMAN XP 850 EPS INTL
- Model code
- A09ZX85FS/CFS
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012616 Ecm-prog,sportsman 850,sm |
4012616 |
US $751.07 |
||
|
2
|
2
7512095 Screw |
7512095 |
US $6.04 |
||
|
3
|
3
4011636
Regulator-voltage,600 watt
|
4011636 |
— | ||
|
4
|
4
7518533 Bolt-m6x1,0x20,hxhd,flg,blk |
7518533 |
US $1.96 |
||
|
5
|
5
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
6
|
6
4012166 Switch-key,4 pos,atv,mt slvIncl. 5; |
4012166 |
US $98.44 |
||
|
7
|
7
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
8
|
8
7518541 Scr-fuelrail,dualpnt,m6x20shcs |
7518541 |
US $14.09 |
||
|
8
|
8
2411082
Sensor-tmap dss3
|
2411082 |
— | ||
|
9
|
9
2410857
Sensor-speed
|
2410857 |
— | ||
|
10
|
10
4010644 Sensor-thermister |
4010644 |
US $88.57 |
||
|
11
|
11
3131705 Sensor assy |
3131705 |
US $303.17 |
||
|
12
|
12
4010638 Receptacle-pod mnt,12 volt |
4010638 |
US $15.26 |
||
|
13
|
13
2202794 Kit-brake light swtch 98-16756 |
2202794 |
US $64.02 |
||
|
14
|
14
3233835
Switch-rotary,6 pin
Gear Position; |
3233835 |
— | ||
| replacement | |||||
|
14
|
14
3236115 SWITCH-ROTARY,6 PINGear Position; |
3236115 |
US $130.52 |
||
|
15
|
15
3233834 Ring-retaining |
3233834 |
US $10.01 |
||
|
16
|
16
3234299
Sensor, speed
|
3234299 |
— | ||
|
17
|
17
3234302 O-ring, -113 |
3234302 |
US $9.24 |
||
|
18
|
18
3234329
Screw,hexflangehead,m8x1,25x30
|
3234329 |
— | ||
|
19
|
19
5251244 Brkt-mount,ecu |
5251244 |
US $1.49 |
||
|
20
|
20
4011638 Valve-iac |
4011638 |
US $150.26 |
||
|
21
|
21
5252132 Brkt-iac |
5252132 |
US $4.34 |
||
|
22
|
22
7518613
Bolt-m6x1,0x20,hxflg,olive d
|
7518613 |
— | ||
|
23
|
23
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
24
|
24
5253294 Cover-voltage regulator |
5253294 |
US $2.85 |
||
|
25
|
25
4011318
Switch-hazard,spst
|
4011318 |
— | ||
|
26
|
26
4011553
Module-flash/turn
|
4011553 |
— | ||
|
27
|
27
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
