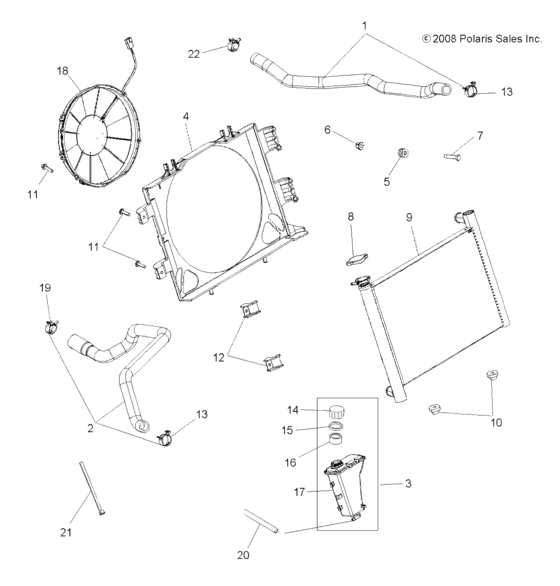

Engine, cooling system (A09ZX85FS/CFS) Diagram Polaris SPORTSMAN XP 850 EPS INTL
- Model code
- A09ZX85FS/CFS
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1240407
Asm-hose,radiator,eng out,25mm
Incl. 13, Hose; |
1240407 |
— | ||
|
2
|
2
1240449
Asm-hose-radiator,eng in,25mm
Incl. 13,19, Hose; |
1240449 |
— | ||
|
3
|
3
1240406 Asm-bottle,coolant recoveryIncl. 14-17,20; |
1240406 |
US $86.61 |
||
|
4
|
4
5437627
Shroud-fan
|
5437627 |
— | ||
|
5
|
5
5413509 Asm-grommet and insert |
5413509 |
US $20.28 |
||
|
6
|
6
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
7
|
7
7518530 Bolt-m6x1,0x30,hxhd,flg,blk |
7518530 |
US $1.49 |
||
|
8
|
8
1240466 Cap-pressure 13 psi |
1240466 |
US $61.23 |
||
|
9
|
9
1240404 Radiator-11 fpi,25mm fittings |
1240404 |
US $552.21 |
||
|
10
|
10
5413510 Grommet-mount,lower radiator |
5413510 |
US $14.28 |
||
|
11
|
11
7518918 Screw-m6x15,thrd frm |
7518918 |
US $18.52 |
||
|
12
|
12
5437628 Clip-shroud,fan |
5437628 |
US $21.67 |
||
|
13
|
13
7081520
Clamp, hose
|
7081520 |
— | ||
|
14
|
14
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
15
|
15
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
16
|
16
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
17
|
17
5437257
Bottle, collant recovery
|
5437257 |
— | ||
|
18
|
18
2411119
Fan-12" assembly
|
2411119 |
— | ||
|
19
|
19
7081521
Clamp, hose
|
7081521 |
— | ||
|
20
|
20
8450128-27 Line-coolant,27cm |
8450128-27 |
US $22.31 |
||
|
21
|
21
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
22
|
22
7080844 Clamp,springband 35/12,blk |
7080844 |
US $8.66 |
