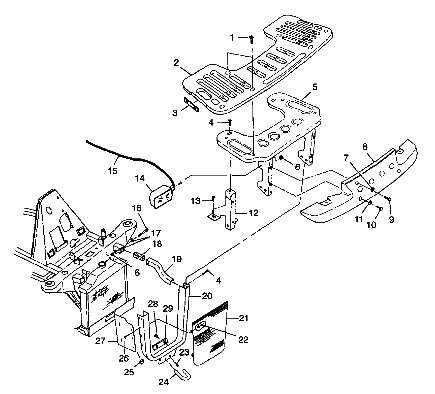

Front rack and bumper mounting (S98CH50E(B)) Diagram Polaris SWEDISH SPORTSMAN 500
- Model code
- S98CH50E
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515194
Screw
10; |
7515194 |
— | ||
| replacement | |||||
|
1
|
1
7517685 Screw(10)10; |
7517685 |
US $65.60 |
||
|
2
|
2
2670180
Asm., front rack
Incl. Ref. 3 & Warning Decal; |
2670180 |
— | ||
| replacement | |||||
|
2
|
2
2670180-070 Rack,front,blk **Incl. Ref. 3 & Warning Decal; |
2670180-070 |
US $254.08 |
||
|
3
|
3
2670071
Reflector amber
|
2670071 |
— | ||
|
4
|
4
7515399 Screw(10) *10; |
7515399 |
US $6.13 |
||
|
5
|
5
2200775
Kit, front rack mount
|
2200775 |
— | ||
|
6
|
6
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
7
|
7
7555955
Washer
10; |
7555955 |
— | ||
| replacement | |||||
|
7
|
7
7558403 Washer,wrought10; |
7558403 |
US $2.45 |
||
|
8
|
8
5432155-070 Bumper,blk |
5432155-070 |
US $152.65 |
||
|
9
|
9
7515391 Bolt(10) *10; |
7515391 |
US $1.89 |
||
|
10
|
10
7515390
Bolt
10; |
7515390 |
— | ||
|
11
|
11
7555954 Washer10; |
7555954 |
US $2.45 |
||
|
12
|
12
1040554-067
Support,lh,f.rack
|
1040554-067 |
— | ||
| replacement | |||||
|
12
|
12
1013210-067 Support,frt,rack,lh,blk |
1013210-067 |
US $86.64 |
||
|
12
|
12
1040555-067
Support,rh,f.rack
|
1040555-067 |
— | ||
| replacement | |||||
|
12
|
12
1013211-067 Support,frt, rack,rh,blk |
1013211-067 |
US $102.39 |
||
|
13
|
13
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
14
|
14
4030059
Bulb,h/l,27w,hobbs
|
4030059 |
— | ||
|
14
|
14
2431014 Asm,,headlight, side mount,lh,3 |
2431014 |
US $128.21 |
||
|
14
|
14
2431015 Asm,,headlight, side mount,rh,3 |
2431015 |
US $128.21 |
||
|
15
|
15
2460610 Harness,h/l,lo |
2460610 |
US $81.76 |
||
|
16
|
16
7515384
Bolt(10)
10; |
7515384 |
— | ||
|
17
|
17
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
18
|
18
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
19
|
19
5241398-067
Extension,lh,frame,blk,
|
5241398-067 |
— | ||
|
19
|
19
5241399-067
Extension,rh,frame,blk,
|
5241399-067 |
— | ||
|
20
|
20
5241583-067
Guard,brush,blk
|
5241583-067 |
— | ||
|
21
|
21
5240591-067 Grill,brushguard,blk, |
5240591-067 |
US $94.52 |
||
|
22
|
22
7621330 Rivet, pop(50)50; |
7621330 |
US $0.79 |
||
|
23
|
23
7517208 Screw(10)10; |
7517208 |
US $1.89 |
||
|
24
|
24
5241224
Hitch-u-bolt
C;D; |
5241224 |
— | ||
| replacement | |||||
|
24
|
24
5241224-067 Hitch,u-bolt,blk,C;D; |
5241224-067 |
US $51.21 |
||
|
25
|
25
7670094 Nut10; |
7670094 |
US $3.75 |
||
|
26
|
26
7512097 Screw(10)10; |
7512097 |
US $1.49 |
||
|
27
|
27
5431814
Shield,lh radiator **
|
5431814 |
— | ||
|
27
|
27
5431815
Shield,rh radiator
|
5431815 |
— | ||
|
28
|
28
7515547 Screw10;C;D; |
7515547 |
US $9.85 |
||
|
29
|
29
5131312
Spacer,brushguard
|
5131312 |
— | ||
|
29
|
29
5211633-067 Plate,back mt,blk,C;D; |
5211633-067 |
US $18.32 |
||
