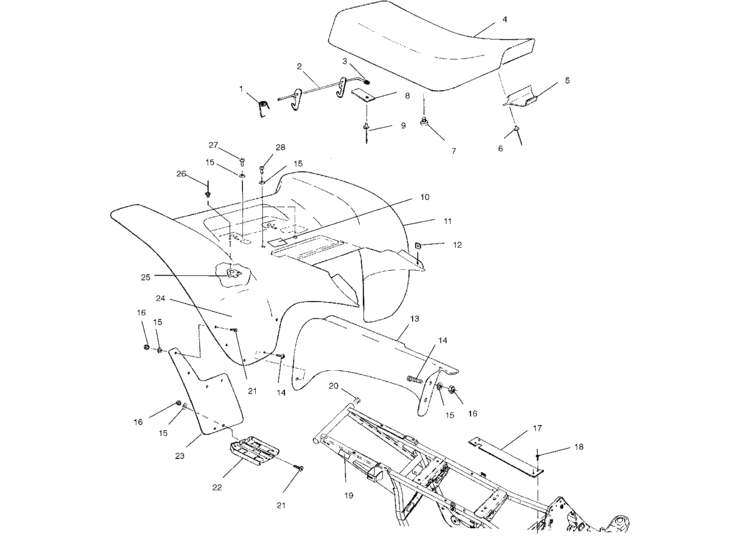

Rear cab (A03BA25CA/CB) Diagram Polaris TRAIL BLAZER 250
- Model code
- A03BA25CA/CB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7041607
Spring,latch,light
|
7041607 |
— | ||
|
2
|
2
1040412 Latch, seatback |
1040412 |
US $37.63 |
||
|
3
|
3
5411392
Cap,seatlatch
|
5411392 |
— | ||
|
4
|
4
2681769-070
Cover,seat,blk,
|
2681769-070 |
— | ||
|
4
|
4
2682453-070
Seat, black
|
2682453-070 |
— | ||
|
5
|
5
5431986 Tongue,seat |
5431986 |
US $8.17 |
||
|
6
|
6
7621479 Rivet(50) |
7621479 |
US $2.45 |
||
|
7
|
7
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
8
|
8
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
9
|
9
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
10
|
10
7079901
Decal-carb/filter info
|
7079901 |
— | ||
|
11
|
11
5434014-053
Cab, rear, med yellow
CA; |
5434014-053 |
— | ||
|
11
|
11
5434014-341
Cab, rear, med sonic blue
CB; |
5434014-341 |
— | ||
|
12
|
12
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
13
|
13
2632280
Asm,,shield muffler/foil
|
2632280 |
— | ||
|
13
|
13
5811230 Foil |
5811230 |
US $37.89 |
||
|
14
|
14
7517264 Screw (10) |
7517264 |
US $1.89 |
||
|
15
|
15
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
16
|
16
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
17
|
17
5241403-067
Guard, clutch
|
5241403-067 |
— | ||
|
18
|
18
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
19
|
19
7079925 Decal-reflect,2,88,red |
7079925 |
US $3.64 |
||
|
20
|
20
5432831 Plug,endcap,ribbed |
5432831 |
US $3.75 |
||
|
21
|
21
7512282 Bolt, black(10) |
7512282 |
US $1.89 |
||
|
23
|
23
5812134 Mudflap-rear,lh |
5812134 |
US $27.39 |
||
|
23
|
23
5850148
Mudflap,rh,r,hybrid
|
5850148 |
— | ||
|
24
|
24
5810957 Foil |
5810957 |
US $28.58 |
||
|
24
|
24
5810991 Foil,small |
5810991 |
US $9.15 |
||
|
25
|
25
5220880 Brkt,rear holddown |
5220880 |
US $7.09 |
||
|
26
|
26
7621472 Rivet(50) * |
7621472 |
US $98 |
||
|
27
|
27
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
28
|
28
7512242 Screw(10) |
7512242 |
US $0.79 |
