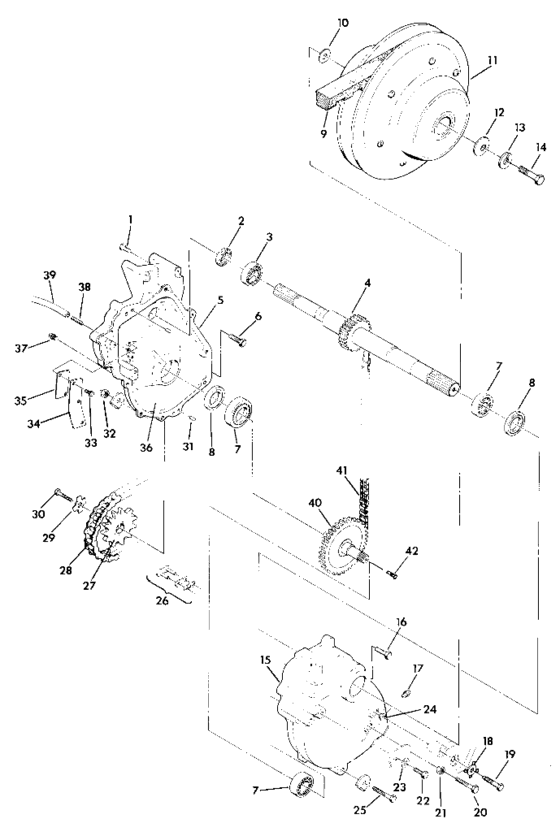

Gearcase assembly Diagram Polaris TRAIL BLAZER 250
- Model code
- W907221
- Year
- 1990
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512242 Screw(10)10; |
7512242 |
US $0.79 |
||
|
2
|
2
3610014
Seal, oil
|
3610014 |
— | ||
|
3
|
3
3514001 Bearing, ball |
3514001 |
US $20.69 |
||
|
4
|
4
5130776
Shaft, input
|
5130776 |
— | ||
|
5
|
5
8570041
Desc not available
No Longer Available; |
8570041 |
— | ||
|
6
|
6
7512225 Screw10; |
7512225 |
US $3.26 |
||
|
7
|
7
3514304 Bearing,205,w/o seal #6205 |
3514304 |
US $19.69 |
||
|
8
|
8
3610015 Seal, oil |
3610015 |
US $6.11 |
||
|
9
|
9
3211048
Belt-drive
5; |
3211048 |
— | ||
| replacement | |||||
|
9
|
9
3211077 Belt,drive (5)5; |
3211077 |
US $102.36 |
||
|
10
|
10
5211041
Spacer,washer,driven clutch
|
5211041 |
— | ||
|
11
|
11
1322138
Clutch, driven
|
1322138 |
— | ||
| replacement | |||||
|
11
|
11
1322180 Asm,,clutch,driven,hvy ret |
1322180 |
US $1,076.23 |
||
|
12
|
12
5220646 Washer, domed10; |
5220646 |
US $6.56 |
||
|
13
|
13
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
14
|
14
7515327 Bolt10; |
7515327 |
US $3.75 |
||
|
15
|
15
5130778
Gearcase, lh
No Longer Available; |
5130778 |
— | ||
|
16
|
16
7512243
Screw
10; |
7512243 |
— | ||
|
17
|
17
7051512
Plug,pipe,magnetic
|
7051512 |
— | ||
|
18
|
18
5220958 Plate,bolt lock |
5220958 |
US $24.43 |
||
|
19
|
19
7512701 Bolt, shoulder |
7512701 |
US $14.09 |
||
|
19
|
19
7512702 Bolt, shoulder |
7512702 |
US $15.26 |
||
|
20
|
20
7515485 Bolt10; |
7515485 |
US $3.75 |
||
|
21
|
21
7542404 Nut10; |
7542404 |
US $5.25 |
||
|
22
|
22
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
22
|
22
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
22
|
22
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
23
|
23
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
24
|
24
5630267
Bushing,swing arm mt.
|
5630267 |
— | ||
|
25
|
25
7515472 Bolt10; |
7515472 |
US $6.56 |
||
|
26
|
26
3225024 Connector link |
3225024 |
US $9.15 |
||
|
27
|
27
3221043 Spkt, 11t *Opt.; |
3221043 |
US $44.29 |
||
|
27
|
27
3221044 Spkt, 12t *Opt.; |
3221044 |
US $44.71 |
||
|
27
|
27
3221045
Spkt,13t,
SPLINED; |
3221045 |
— | ||
| replacement | |||||
|
27
|
27
3221041 Spkt,13t,splined *SPLINED; |
3221041 |
US $49.23 |
||
|
28
|
28
3224042
Chain,drive, 88p
|
3224042 |
— | ||
| replacement | |||||
|
28
|
28
3221193-088 Chain-520 ord4,o-ring,88 ptch |
3221193-088 |
US $155.61 |
||
|
29
|
29
7577902
Washer,shakeproof,5/16
|
7577902 |
— | ||
|
30
|
30
7512391
Bolt
10; |
7512391 |
— | ||
|
31
|
31
7661904
Pin, dowel
10; |
7661904 |
— | ||
|
32
|
32
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
33
|
33
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
34
|
34
5211036
Plate, vent
|
5211036 |
— | ||
|
35
|
35
5810305
Gasket, vent
|
5810305 |
— | ||
|
36
|
36
5130779
Gearcase,rh,mach.
|
5130779 |
— | ||
|
37
|
37
7051511
Plug, pipe
10; |
7051511 |
— | ||
|
38
|
38
7661505
Pin, spiral
10; |
7661505 |
— | ||
|
39
|
39
5521087
Line,vent,
38.0``; |
5521087 |
— | ||
| replacement | |||||
|
39
|
39
8360009-600 Line,fuel,1/8 id,600 cm,38.0``; |
8360009-600 |
US $27.39 |
||
|
40
|
40
5130777
Shaft, output
No Longer Available; |
5130777 |
— | ||
|
41
|
41
3224038
Chain, silent
|
3224038 |
— | ||
|
41
|
41
8690042
Oil, gearcase
|
8690042 |
— | ||
| replacement | |||||
|
41
|
41
2870337
New Genuine Part
|
2870337 |
— | ||
|
42
|
42
3280019 Bushing metal speedo |
3280019 |
US $12.11 |
||
