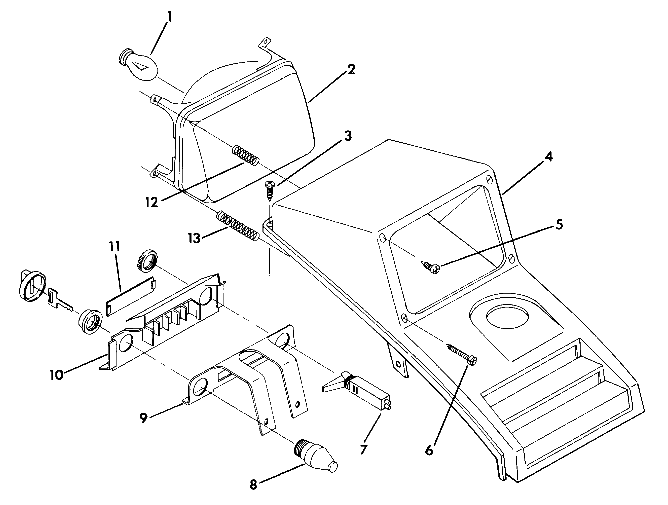

Headlight assembly Diagram Polaris TRAIL BLAZER 250
- Model code
- W907221
- Year
- 1990
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4030028 Bulb, h/l |
4030028 |
US $28.93 |
||
|
2
|
2
4032038
Headlight asm,
|
4032038 |
— | ||
|
3
|
3
7512017 Screw10; |
7512017 |
US $2.45 |
||
|
4
|
4
5430973-152
Cover,h/l.
TAN; |
5430973-152 |
— | ||
|
5
|
5
4032003
Screw, adj.
10; |
4032003 |
— | ||
|
6
|
6
4032042 Screw,adjust,(atv)ATV;10; |
4032042 |
US $3.94 |
||
|
7
|
7
2200188 Kit-choke control |
2200188 |
US $24.61 |
||
|
7
|
7
7080371 Cable, choke |
7080371 |
US $86.68 |
||
|
8
|
8
4110102
Switch,ign.
MOD.; |
4110102 |
— | ||
| replacement | |||||
|
8
|
8
4110139
Switch,ignition,a,d,
MOD.; |
4110139 |
— | ||
|
9
|
9
5220965-067 Brkt, ign, panel |
5220965-067 |
US $18.76 |
||
|
10
|
10
5430995
Panel, ignition
|
5430995 |
— | ||
|
11
|
11
2652067
Lens asm.,dash
|
2652067 |
— | ||
|
12
|
12
4032002 Spring-adj |
4032002 |
US $22.89 |
||
|
13
|
13
4032041
Spring,adj,
|
4032041 |
— | ||
