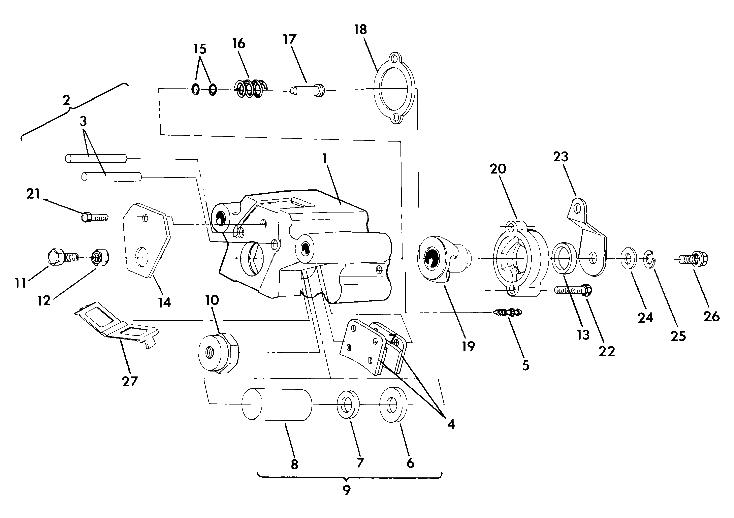

Rear brake assembly Diagram Polaris TRAIL BLAZER 250
- Model code
- W907221
- Year
- 1990
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5130714
Caliper,rear brake
|
5130714 |
— | ||
|
2
|
2
1930644
Kit,pad,r.brake
Incl. 3, 4; |
1930644 |
— | ||
| replacement | |||||
|
2
|
2
2200464 Kit,rear,brakepad,med,dutyIncl. 3, 4; |
2200464 |
US $39.39 |
||
|
3
|
3
7661820 Pin, dowel10; |
7661820 |
US $13.77 |
||
|
5
|
5
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
|
9
|
9
1930666
Kit,brake seals&piston
Incl. 6, 7, 8, 15, 17, 18; |
1930666 |
— | ||
|
10
|
10
5020522
Nut,hex,
BRAKE ADJ.; |
5020522 |
— | ||
|
11
|
11
7515501
Bolt
10; |
7515501 |
— | ||
|
12
|
12
7542432 Nut, jam10; |
7542432 |
US $2.45 |
||
|
13
|
13
3610026 Seal, brake |
3610026 |
US $7.89 |
||
|
14
|
14
5211143
Plate, pin
|
5211143 |
— | ||
|
16
|
16
7041219 Spring,brake,comp, |
7041219 |
US $35.91 |
||
|
18
|
18
5830009 Gasket, brake |
5830009 |
US $4.94 |
||
|
19
|
19
5630366
Ramp,move.brake
|
5630366 |
— | ||
| replacement | |||||
|
19
|
19
2200391
Kit,aux,brake ramp
|
2200391 |
— | ||
|
20
|
20
5630346
Ramp,station.brake
|
5630346 |
— | ||
| replacement | |||||
|
20
|
20
2200391
Kit,aux,brake ramp
|
2200391 |
— | ||
|
21
|
21
7512020 Screw, sems10; |
7512020 |
US $2.98 |
||
|
22
|
22
7512292
Bolt, soc. hd.
10; |
7512292 |
— | ||
|
23
|
23
5222457
Arm,brake caliper
|
5222457 |
— | ||
|
24
|
24
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
25
|
25
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
26
|
26
7512289
Bolt
10; |
7512289 |
— | ||
|
27
|
27
5222232
Spring,anti-rattle
|
5222232 |
— | ||
