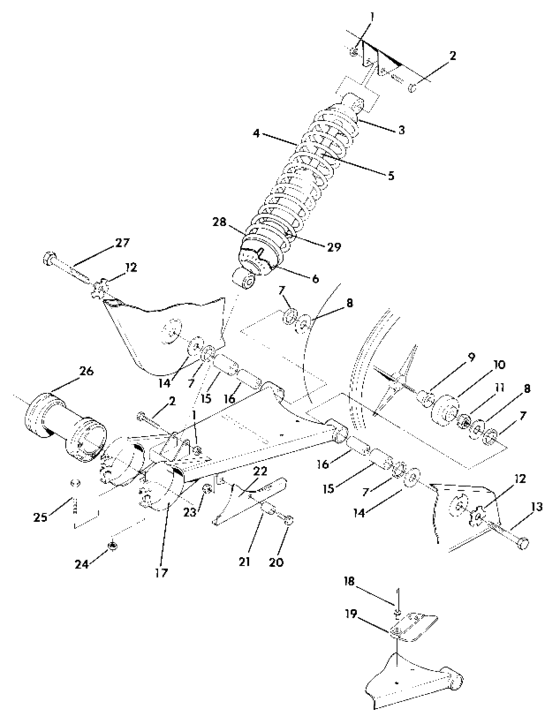

Swing arm weldment and rear shock assembly Diagram Polaris TRAIL BLAZER 250
- Model code
- W907221
- Year
- 1990
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
2
|
2
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
|
3
|
3
5222118
Retainer, shock
|
5222118 |
— | ||
|
4
|
4
7041204-119
Spring,comp,rear
|
7041204-119 |
— | ||
| replacement | |||||
|
4
|
4
7041204-067 Spring,comp,rear |
7041204-067 |
US $89.79 |
||
|
5
|
5
7041218
Shock, rear
|
7041218 |
— | ||
| replacement | |||||
|
5
|
5
7041448 Shock,rear |
7041448 |
US $178.73 |
||
|
6
|
6
5630334 Cam,adjusting spring |
5630334 |
US $27.09 |
||
|
7
|
7
3610016 Seal,oil |
3610016 |
US $25.08 |
||
|
8
|
8
7555779
Washer
10; |
7555779 |
— | ||
|
9
|
9
5630267
Bushing,swing arm mt.
|
5630267 |
— | ||
|
10
|
10
5431003
Roller,chain guide
|
5431003 |
— | ||
|
11
|
11
7542601
Nut,crown lock
10; |
7542601 |
— | ||
|
12
|
12
5220958 Plate,bolt lock |
5220958 |
US $24.43 |
||
|
13
|
13
7512702 Bolt, shoulder |
7512702 |
US $15.26 |
||
|
14
|
14
7555752 Bushing, mach.10; |
7555752 |
US $1.89 |
||
|
15
|
15
3576507 Bearing |
3576507 |
US $15.35 |
||
|
16
|
16
5010255
Bushing,swing arm
|
5010255 |
— | ||
|
17
|
17
1580048-067
Arm, swing
|
1580048-067 |
— | ||
|
18
|
18
7621433 Rivet(50)50; |
7621433 |
US $0.79 |
||
|
19
|
19
5431017 Guide, chain |
5431017 |
US $2.28 |
||
|
20
|
20
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
21
|
21
5332828 Bushing |
5332828 |
US $7.18 |
||
|
22
|
22
5430952
Guard,chain
MODIFIED; |
5430952 |
— | ||
| replacement | |||||
|
22
|
22
5430776 Guard, chain*MODIFIED; |
5430776 |
US $35.67 |
||
|
23
|
23
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
24
|
24
7542522 Nut,flange10; |
7542522 |
US $3.75 |
||
|
25
|
25
7512569
Bolt
10; |
7512569 |
— | ||
|
26
|
26
5130663
Housing, axle
|
5130663 |
— | ||
|
27
|
27
7512701 Bolt, shoulder |
7512701 |
US $14.09 |
||
|
28
|
28
5630351
Adapter,spring,seat
|
5630351 |
— | ||
|
29
|
29
5431032 Sleeve,spring protector |
5431032 |
US $21.07 |
||
