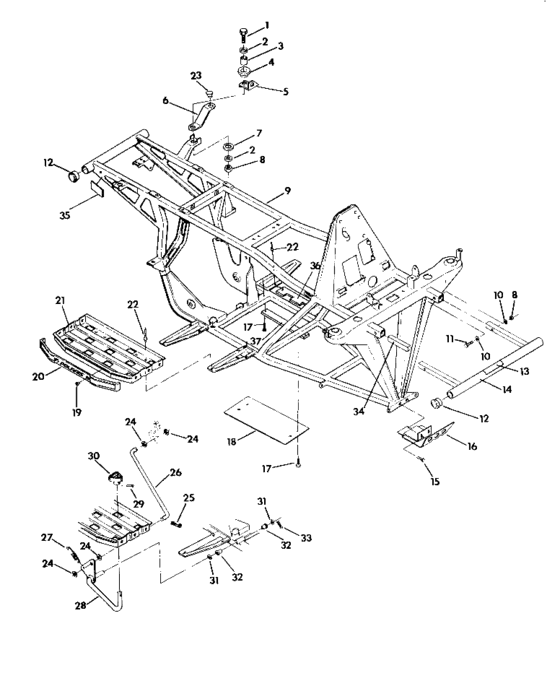

Frame assembly (Trail Blazer / W927221) Diagram Polaris TRAIL BLAZER 250
- Model code
- W927221
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
2
|
2
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
5410241
Dampener, vibration
|
5410241 |
— | ||
|
5
|
5
5220899-067
Brkt,lh support rack
|
5220899-067 |
— | ||
| replacement | |||||
|
5
|
5
5243468-067
Brkt,support rack,lh,blk
|
5243468-067 |
— | ||
|
5
|
5
5220901-067
Brkt,rh support rack
|
5220901-067 |
— | ||
| replacement | |||||
|
5
|
5
5243469-067
Brkt,support rack,rh,blk
|
5243469-067 |
— | ||
|
6
|
6
5220902-067 Support,r,fender |
5220902-067 |
US $36.61 |
||
|
7
|
7
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
8
|
8
7542324 Nut,nylok(10)10;Nylok; |
7542324 |
US $26.30 |
||
|
9
|
9
1040270-067
Frame, square,
No Longer Available; ATV; |
1040270-067 |
— | ||
|
10
|
10
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
11
|
11
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
12
|
12
5430823
Cap, bumper, 4 whl.
10; |
5430823 |
— | ||
| replacement | |||||
|
12
|
12
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
13
|
13
7073455
Decal, f.susp.
|
7073455 |
— | ||
|
14
|
14
2670124-067
Bumper, front
|
2670124-067 |
— | ||
|
15
|
15
7512399 Screw10; |
7512399 |
US $3.94 |
||
|
16
|
16
2670126-067
Brkt,low,f,bumper
|
2670126-067 |
— | ||
|
17
|
17
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
18
|
18
5211257-067
Guard, rock
|
5211257-067 |
— | ||
|
19
|
19
7661825 Rivet,(50)50; |
7661825 |
US $0.79 |
||
|
20
|
20
5431484
Trim, footrest
|
5431484 |
— | ||
|
21
|
21
1040274
Footpad,lh,
ATV; |
1040274 |
— | ||
| replacement | |||||
|
21
|
21
1040274-117 Footpad,lh,silverATV; |
1040274-117 |
US $101.45 |
||
|
22
|
22
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
22
|
22
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
23
|
23
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
23
|
23
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
24
|
24
7555827 Washer10; |
7555827 |
US $3.26 |
||
|
25
|
25
7661103 Pin, cotter10; |
7661103 |
US $3.26 |
||
|
26
|
26
5224394
Rod,brake linkage
|
5224394 |
— | ||
| replacement | |||||
|
26
|
26
5224446
Rod,brake link spring
|
5224446 |
— | ||
|
27
|
27
7042029 Spring(10)10; |
7042029 |
US $2.17 |
||
|
28
|
28
1910045-067 Pedal, brake |
1910045-067 |
US $14.07 |
||
|
29
|
29
7661416
Pin, spiral
10; |
7661416 |
— | ||
|
30
|
30
5130715-067
Pedal,foot
|
5130715-067 |
— | ||
|
31
|
31
7558702 Washer thrust10; |
7558702 |
US $2.45 |
||
|
32
|
32
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
33
|
33
7661401 Pin,cotter(10)10; |
7661401 |
US $3.94 |
||
|
34
|
34
5810467 Plug, frameFoam; |
5810467 |
US $6.60 |
||
|
35
|
35
2670133 Reflector asm,red |
2670133 |
US $9.45 |
||
|
36
|
36
5222860-067
Guard,clutch,outer
|
5222860-067 |
— | ||
|
37
|
37
5211359-067
Guard,clutch,inner
|
5211359-067 |
— | ||
